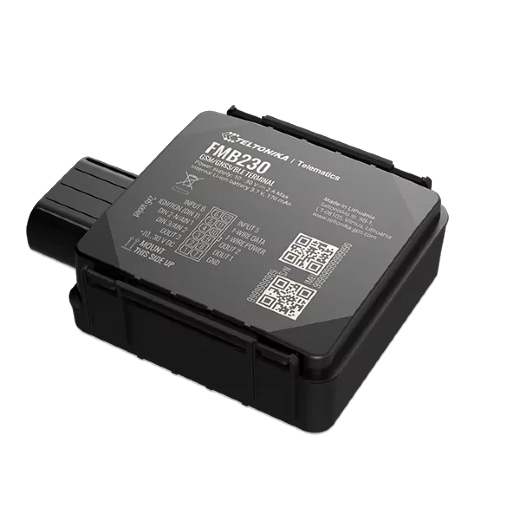

Teltonika FMB230

FMB230 is a water and dust resistant tracker with internal GNSS, GSM antennas, configurable digital/analogue inputs/negative input/impulse inputs, three DOUT outputs, Bluetooth connectivity and backup battery. FMB230 is developed on the existing Teltonika platform, therefore it keeps all of the functionalities from FMB130 with an additional IP67 resistance to dust and water. This tracker is

Mostrar más

FMB230 is a water and dust resistant tracker with internal GNSS, GSM antennas, configurable digital/analogue inputs/negative input/impulse inputs, three DOUT outputs, Bluetooth connectivity and backup battery.

FMB230 is developed on the existing Teltonika platform, therefore it keeps all of the functionalities from FMB130 with an additional IP67 resistance to dust and water.

This tracker is dust tight and protected against the effects of a temporary immersion in water. It can be mounted inside and outside of a vehicle without worries that high pressured water, mud or dusty environment will impact its operation or performance quality. This is particularly relevant for the industries where harsh conditions exist, such as agriculture, construction and mining, and more.

As well as FMB130, FMB230 has 3xDOUT, that allows you to use simultaneously 3 different DOUT scenarios like: immobilizer, buzzer, alarm lights, door lock and others.

This tracker also has a negative input possibility, that allows you to save your precious integration time while connecting accessories like vehicle door sensor, alarm button, seatbelt detection and similar sensors or accessories. At the same time, Impulse Input can be used for fuel flow meter data reading. Impulse based fuel usage control is much more accurate than different kind of fuel level sensors and enables possibility to be precise if needed. It is perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.


Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47776
Auto registro

Información general

FinalidadVehículo
Tamaño70.5x67.0x25.6 mm (2.78x2.64x1.01 in)
ImpermeableIP67
Antena interna (GNSS)Yes
Antena interna (Conexión)Yes

Conectividad

Estado de roaming
Nivel de señal
Tipo de la red del celularQuad-band 850/900/1800/1900
Generación de red celular2G
ID del operadorYes

Información de ubicación

Nivel de señal GNSS
LBS
Localización forzada por GNSS preferente a GPRS
Localización forzada de GNSS preferente a SMS
GPS
GLONASS
Galileo
Beidou
GPS asistidoYes

Características

Control remoto de las salidas
Odómetro
Acelerómetro
Lectura del identificador del conductor
Capacidad de batería170 mAh

Interfaces

Entradas digitales4
Número de salidas3
Sensor analógico
Sensor de impulsos
Sensor de frecuencia
Interfaz 1-WireYes
Tipo de lector CAN/OBDIIExternal
