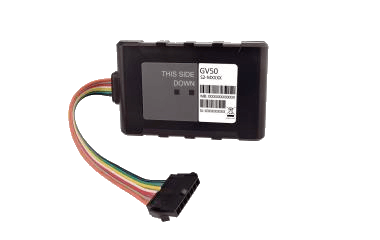

Queclink GV50VC

The GV50VC is a powerful GPS locator designed for vehicle or asset tracking. It has superior receiver sensitivity and supports Dual-Band CDMA2000-1x frequencies 800/1900, and its location can be monitored in real time or periodically tracked by a backend server or other specified terminals. The GV50VC has multiple input/output interfaces that can be used for monitoring or controlling external devices.

Mostrar más

The GV50VC can communicate with a backend server through the CDMA2000-1x network over which it transfers reports of emergency, geo-fence boundary crossings or scheduled GPS position as well as many other useful functions. Users can also use GV50VC to monitor the status of a vehicle and control the vehicle by its external relay output.

GV55VC is a simple GPS device for basic vehicle tracking. It has built-in antennas only, which makes the installation process very easy. Unfortunately, it doesn’t have an internal backup battery.

Product Features

  • Easy installation thanks to compact size and built-in antennas
  • Dual-band CDMA2000 1xRTT frequencies 800/1900 MHz, 3G support
  • 8..32V voltage range (good for trucks and buses with 24V power)
  • Harsh driving monitoring
  • Tow detection
  • Adjustable tracking modes
  • One positive trigger for ignition detection
  • One digital output, open drain, 150 mA max drive current
  • One buzzer output control or negative trigger input can be software configured

Cons

  • No backup battery
  • No sockets for external antennas
  • No waterproof category
  • No digital interfaces – means no possibility to connect digital devices, i.e. fuel level sensors or camera.

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47672
Auto registro

Información general

FinalidadVehículo
Peso50 g (1.76 oz.)
Tamaño87x55x12 mm (3.43x2.17x0.47 in)
Antena interna (GNSS)
Antena interna (Conexión)

Conectividad

Nivel de señal
Tipo de la red del celularCDMA2000 800/1900
Generación de red celular3G

Información de ubicación

Nivel de señal GNSS
LBS
Localización forzada por LBS preferente a GPRS
Localización forzada de GNSS preferente a SMS
GPS

Características

Control remoto de las salidas
Odómetro
Acelerómetro

Interfaces

Entradas digitales2
Número de salidas2
