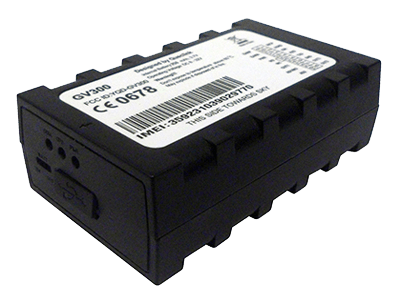

Queclink GV300

Queclink GV300 is a vehicle tracking device with support of A-GPS and GLONASS navigation. The device has a wide range of inputs and outputs, one RS232 interface and a socket for optional external GPS antenna. Queclink's firmware offers a lot of configurable options for working modes, detecting events, harsh behaviour monitoring and other.

Mostrar más

Queclink GV300 is a compact device designed for concealed installation in the vehicle. There are both internal and external GPS antennas: in other words, external antenna is optional. The device is embedded with rechargeable backup battery. Three LED indicators help during the installation and diagnostic. Queclink GV300 is not waterproof.

GPS tracking accuracy

Thanks to GNSS chip from ublox and functional firmware Queclink GV300 supports: multi-system navigation (GPS and GLONASS), Assisted GPS (A-GPS) technology and Cell ID based location. The overall sensitivity is good enough (if necessary you can connect an external GPS antenna). Together with adjustable tracking modes all of these guarantee reliable and accurate GPS tracking.

I/O and interfaces

There are number of inputs in GV300, including analog ones, which allow to connect multiple vehicle sensors of various types. To control external equipment a couple of outputs is used. One serial interface (type RS232) lets connect, on user’s choice, digital fuel level sensor, camera, PND (Garmin protocol is supported) or external CAN reader.

Pros

As a GPS tracker manufacturer Queclink is well known for its functional devices with comprehensive firmware, and GV300 is not the exception. The firmware allows to configure a lot of options (including remote control over GPRS), detect a wide range of events, read data from CAN bus and digital fuel level sensors, use Garmin-compatible PND, monitor driving behaviour. The firmware of Queclink GV300 can be updated OTA (Over-the-Air).

  • Adjustable working modes: tracking, sleeping
  • Self-monitoring: GPS/GSM/Battery levels
  • RS232 for digital devices: fuel level sensor, CAN bus reader, camera, Garmin-compativle PND
  • Wide range of detectable events (including tow, jamming)
  • Driver behaviour monitoring based on accelerometer, speed and ignition
  • Rechargeable backup battery
  • Over-the-Air firmware update

Cons

  • There is only one RS232 serial interface, which can be a limitation if you want to connect multiple digital devices, i.e. two fuel sensors or fuel sensor and camera. For these cases RS485 interface would be better, but there is no such an interface.
  • The absence of 1-wire interface makes it more difficult to control the temperature and identify drivers, though external RFID reader can be still connected to RS232 interface
  • Not waterproof. If you require IP-rated water resistance, check Queclink GMT100 or Queclink GMT200 models instead

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47764
Integrado04/08/2014

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso71 g (2.5 oz.)
Tamaño80x49x26 mm (3.15x1.93x1.02 in)

Localización GNSS

Antena interna (GNSS)
Antena externa (GNSS)Opcional
GPS
GPS asistido
Chipsetu-blox

Conectividad

Tipo de la red del celularGSM Quad Band
Antena interna (Conexión)
Generación de red celular2G

Interfaces

Número de Interfaces RSC2321
Número de salidas3
Número de entradas (todos tipos)5
Entrada ACC/ignisión
Entradas digitales
Soportado
Entrada análoga
Soportado
Interfaz RS232
Salidas
Soportado

Características de hardware

Capacidad de bateríanumber-mah-0 mAh, 250 mAh
Batería integrada
El botón de pánico
Acelerómetro

Hardware extras

Lectura del identificador del conductor
Soportado

Características de rastreo

Localización por Cell ID
Soportado
Consumo inteligente de batería
Soportado
Odómetro
Soportado
ECO driving
Soportado

Monitoreo de eventos

Cambio de entrada
Soportado
Corte de alimentación externa
Soportado
Remolque
Soportado

Automonitoreo

Nivel de señal
Soportado
Nivel de señal GNSS
Soportado
Satélites GNSS fijados
Soportado
Voltaje de alimentación externa
Soportado
Nivel de batería interna
Soportado

Leyendo CAN/OBDII

Parámetros CAN/OBDIISí, VIN, Fuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other
Soportado
Lectura de códigos DTC
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por GPRS), Sí
Soportado
Control remoto de las salidasSí (por GPRS), Sí
Localización por LBS preferente a GPRS
Soportado
Localización forzada de GNSS por SMS
Soportado
