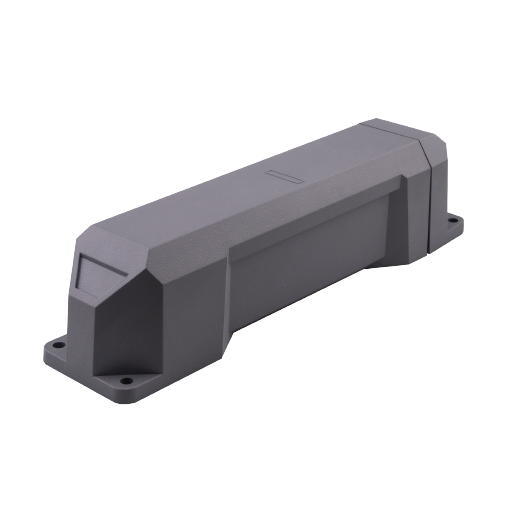

Queclink GL502MG

The GL502MG is a flagship product specifically designed for asset tracking, trailer tracking and container tracking. Its ruggedized IP68 waterproof design ensures the product remains reliable when installed in the harsh environments. The unique casing design allows rapid, flexible and low-cost installations meaning it can simply be placed with container, fixed with four spikes, or set using the optional magnetic holder kit. With 57000 mAh ultra-high capacity battery, the product features up to 10-year standby time meaning that fit and forget installation leaves users safe in the knowledge that the product will continue to monitor the asset over a long period. In addition, its user-replaceable battery brings lower maintenance cost. Its built-in BLE allows connectivity to diverse wireless accessories. It supports Wi-Fi scanning meaning more choice to locate the product and extend its applications in urban environments where there many wireless networks broadcasting and in places that are out of reach to GNSS.


Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47764
Auto registro

Información general

Finalidadasset,vehicle
Peso719 g (25.36 oz.)
Tamaño250x58x61 mm (9.84x2.28x2.4 in)
ImpermeableIP68
Antena interna (GNSS)Yes
Antena interna (Conexión)Yes

Conectividad

Nivel de señal
ID del operador
Tipo de la red del celularCat NB2: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85, Cat M1: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Generación de red celular4G, 2G
WiFi

Información de ubicación

Nivel de señal GNSS
LBS
Wi-Fi LBS
Localización forzada por GNSS preferente a GPRS
Localización forzada de GNSS preferente a SMS
GPS
GLONASS
Galileo
Beidou
GPS asistidoYes

Características

Acelerómetro
Batería integradaYes
Capacidad de batería57000 mAh

Interfaces
