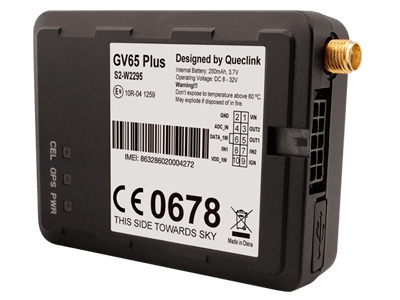

Queclink GV65 Plus

Queclink GV65 Plus is a universal tracking device that supports GPS and GLONASS systems. It has several input-output interfaces, including 1-wire interface for temperature and driver control as well as built-in 3-axis accelerometer. The customer can get all information about about emergency situations, driving behavior and many other factors.

Mostrar más

GV65 Plus is a variation of the original Queclink GV65 model. In that version the vehicle tracker does not have a built-in battery.

It supports GPS and GLONASS systems and has several input-output interfaces, including 1-wire interface for temperature and driver control.

With that device you can easily control the vehicle remotely and get the information about the truck’s status, conditions inside a cabin and driver’s behavior.

Package contents

Package contents include:

  • Queclink GV65 Plus device
  • User cable

Location and tracking

Queclink GV65 Plus model is embedded with GPS and it also supports GLONASS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Queclink GV65 Plus uses a Quad-band GSM 2G module that allows to operate it all over the world.

Power supply

For the Queclink GV65 Plus, VIN (PIN1) / GND (PIN2) are the power input pins. The input voltage range for this device is from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V systems without the need for external transformers.

Local and remote management

Queclink GV65 Plus tracker can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Interfaces

The GV65 Plus has a 10 PIN interface connector. It contains the connections for power, I/O, etc. The device has 1 analog and 2 digital inputs, also it has 1-Wire interface

LED Indication

Queclink GV65 Plus has three LEDs:

  • GPS LED
  • GSM LED
  • Power LED

Accessories

The manufacturer offers original accessories:

  • GPS antenna
  • USB data cable

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47764
Integrado20/08/2015

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso62 g (2.19 oz.)
Tamaño73x54x22.7 mm (2.87x2.13x0.89 in)

Localización GNSS

Antena interna (GNSS)
Antena externa (GNSS)
GPS
GLONASS
Galileo
Beidou
GPS asistido
Chipsetu-blox

Conectividad

Tipo de la red del celularGSM Quad Band
Antena interna (Conexión)
Generación de red celular2G

Interfaces

Número de salidas2
Número de entradas (todos tipos)4
Entradas digitales
Soportado
Entrada análoga
Soportado
Interfaz 1-Wire
Salidas
Soportado

Características de hardware

Acelerómetro

Hardware extras

Lectura del identificador del conductor
Soportado

Características de rastreo

Localización por Cell ID
Soportado
Consumo inteligente de batería
Soportado
Odómetro
Soportado
ECO driving
Soportado

Monitoreo de eventos

Poca batería
Soportado
Cambio de entrada
Soportado
Corte de alimentación externa
Soportado
Remolque
Soportado

Automonitoreo

Nivel de señal
Soportado
Nivel de señal GNSS
Soportado
Satélites GNSS fijados
Soportado
Voltaje de alimentación externa
Soportado
Nivel de batería interna
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por GPRS), Sí
Soportado
Control remoto de las salidasSí (por GPRS), Sí
Soportado
Localización por LBS preferente a GPRS
Soportado
Localización forzada de GNSS por SMS
Soportado
