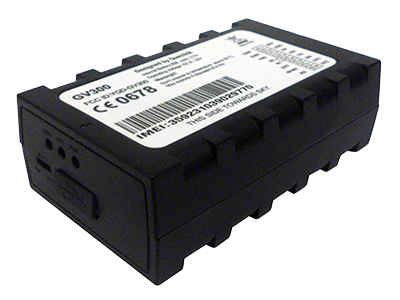

Queclink GV300N

Queclink GV300N is the same Queclink GV300 model, but it has a newer firmware. It is a tracking device with support of A-GPS and GLONASS navigation. The device has a wide range of inputs and outputs, one RS232 interface and a socket for optional external GPS antenna. Queclink's firmware offers a lot of configurable options for working modes, detecting events, harsh behaviour monitoring and other.

Mostrar más

Queclink GV300N is the same Queclink GV300 model, but it has a newer firmware, and it is a compact device designed for concealed installation in the vehicle. There are both internal and external GPS antennas: in other words, external antenna is optional. The device is embedded with rechargeable backup battery. Three LED indicators help during the installation and diagnostic. Queclink GV300N is not waterproof.

GPS tracking accuracy

Thanks to GNSS chip from ublox and functional firmware Queclink GV300N supports: multi-system navigation (GPS and GLONASS), Assisted GPS (A-GPS) technology and Cell ID based location. The overall sensitivity is good enough (if necessary you can connect an external GPS antenna). Together with adjustable tracking modes all of these guarantee reliable and accurate GPS tracking.

I/O and interfaces

There is a number of inputs in GV300N, including analog ones, which allow to connect multiple vehicle sensors of various types. To control external equipment a couple of outputs is used. One serial interface (type RS232) lets connect, on user’s choice, digital fuel level sensor, camera, PND (Garmin protocol is supported) or external CAN reader.

Pros

As a GPS tracker manufacturer Queclink is well known for its functional devices with comprehensive firmware, and GV300N is not the exception. The firmware allows to configure a lot of options (including remote control over GPRS), detect a wide range of events, read data from CAN bus and digital fuel level sensors, use Garmin-compatible PND, monitor driving behaviour. The firmware of Queclink GV300N can be updated OTA (Over-the-Air).

  • Adjustable working modes: tracking, sleeping
  • Self-monitoring: GPS/GSM/Battery levels
  • RS232 for digital devices: fuel level sensor, CAN bus reader, camera, Garmin-compativle PND
  • Wide range of detectable events (including tow, jamming)
  • Driver behaviour monitoring based on accelerometer, speed and ignition
  • Rechargeable backup battery
  • Over-the-Air firmware update

Cons

  • There is only one RS232 serial interface, which can be a limitation if you want to connect multiple digital devices, i.e. two fuel sensors or fuel sensor and camera. For these cases RS485 interface would be better, but there is no such an interface.
  • The absence of 1-wire interface makes it more difficult to control the temperature and identify drivers, though external RFID reader can be still connected to RS232 interface
  • Not waterproof. If you require IP-rated water resistance, check Queclink GMT100 or Queclink GMT200 models instead

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47764
Auto registro

Información general

FinalidadVehículo

Conectividad

Nivel de señal
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS
Localización forzada por GNSS preferente a GPRS
Localización forzada de GNSS preferente a SMS
Localización forzada por LBS preferente a GPRS

Características

Control remoto de las salidas
Odómetro
Acelerómetro
Lectura del identificador del conductor

Interfaces

Entradas digitales4
Número de salidas3
Sensor analógico
