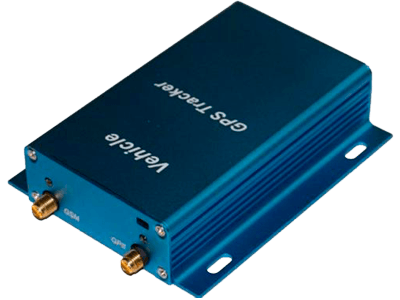

Meitrack VT310

It has a GPRS antenna and external GPS antenna for better signal receive.

Location and tracking

Meitrack VT310 model is embedded with GPS chip. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

The tracking mode is flexible and can be configured depending on distance, time and angle. The default parameters set by the system are 100m,  60 sec,  30 degrees. When there is no movement, tracker sends data every 180 seconds.

Interfaces

• 5 digital inputs (1 negative input and 1 positive input)
• 2 analog detection inputs
• 5 outputs
• 1 USB port

Mobile networks

With Quad-band GSM 2G module Meitrack VT310 can be operated all over the world.

Power supply

Meitrack VT310 uses voltage range 11-36V, which makes possible to install it both on cars and trucks. Device also features a built-in rechargeable backup battery. When fully charged it ensures about 3 hours of device operation (in normal conditions).

Local and remote management

Meitrack devices support management via GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.

LED Indication

VT310 has two status LEDs:

• Status LED: indicates GSM/GPRS mode
• Navigate LED: indicates GPS reception
