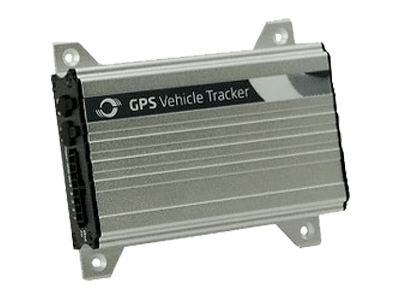

Meitrack MVT380

Meitrack MVT380 is a vehicle GPS tracker for using in personal cars to control the safety and status of the vehicles. It is positioned by the manufacturer as an anti-thief terminal.

Show more

It has the external GPS and GSM antennas and a full set of the popular tracking features.

The device has a microphone and a speaker for the voice communication.

Location and tracking

MVT380 model is embedded with GPS chip. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

The tracking mode is flexible and can be configured depending on distance, time and angle. The default parameters set by the system are 100m,  60 sec,  30 degrees. When there is no movement, tracker sends data every 180 seconds.

Interfaces

  • 5 digital inputs (3 negative inputs and 2 positive inputs)
  • 2 analog detection inputs
  • 5 outputs
  • 1 loudspeaker or microphone port
  • 1 USB port

Mobile networks

With Quad-band GSM 2G module Meitrack MVT380 can be operated all over the world.

Power supply

Meitrack MVT380 uses voltage range 11-36V, which makes possible to install it both on cars and trucks. Device also features a built-in rechargeable backup battery. When fully charged it ensures about 3 hours of device operation (in normal conditions).

Local and remote management

Meitrack devices support management via GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.

LED Indication

MVT380 has two status LEDs:

  • Status LED: indicates GSM/GPRS mode
  • Navigate LED: indicates GPS reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47752
Integrated on19/03/2015

General information

PurposeVehicle
InstallationProfessional

Housing

Weight190 g (6.7 oz.)
Size105x65x26 mm (4.13x2.56x1.02 in)

GNSS Location

External antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
External antenna (Connection)Yes

Interfaces

Number of outputs5
Number of inputs (all types)7
Discrete inputsYes
Supported
Analog inputsYes
Supported
1-Wire interfaceYes
OutputsYes
Supported

Hardware features

Battery capacity850 mAh
Built-in batteryYes

Events monitoring

Battery lowYes
Supported
Input changeYes
Supported
Antenna cut offYes
Supported
Device switched on/offYes
Supported

Self monitoring

GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Remote outputs controlYes (over GPRS), Yes
Forced GNSS location update over SMSYes
On request
