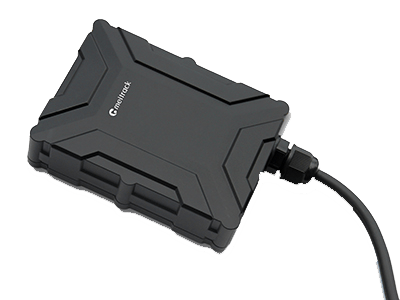

Meitrack T366G is a vehicle GPS tracker with IP67 water-resistance rating and can be installed into cars, motorcycles, yachts, and boats. It is equipped with built-in GPS and GSM antennas. The unit can work well in extreme environments.
Location and tracking
T366G model is embedded with GPS chip. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
The tracking mode is flexible and can be configured depending on distance, time and angle. The default parameters set by the system are 100m, 60 sec, 30 degrees. When there is no movement, tracker sends data every 180 seconds.
- 2 digital inputs (1 negative input and 1 positive input)
- 1 analog detection input
- 1 output
- 1-Wire iButton
- 1-Wire temperature sensor
- 1 USB port
With Quad-band GSM 3G module and LTE support, Meitrack T366G can be operated all over the world.
Meitrack T366G uses voltage range 11-36V, which makes possible to install it both on cars and trucks. Device also features optional rechargeable backup battery. When fully charged it ensures about 3 hours of device operation (in normal conditions).
Local and remote management
Meitrack devices support management via GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.
T366G has two status LEDs:
- Status LED: indicates GSM/GPRS mode
- Navigate LED: indicates GPS reception
|EU platform||tracker.navixy.com (18.104.22.168)|
|US platform||tracker.us.navixy.com (22.214.171.124)|
|Peso||100 g (3.53 oz.)|
|Tamanho||80.5x60x23.5 mm (3.17x2.36x0.93 in)|
|À prova d\'água||IP67|
|Antena interna (GNSS)||Yes|
|Tipo de rede celular||GSM Quad Band|
|Antena interna (Conexão)||Yes|
|Geração de rede celular||4G|
|Number of outputs||1|
|Number of inputs (all types)||3|
|Driver ID reading||Yes|
|External temperature sensor reading||Yes|
|Location by Cell ID||Yes|
|External power cut off||Yes|
|GNSS signal level||Yes|
|External power source voltage||Yes|
|Internal battery level||Yes|
|Server connection setup over SMS||Yes|
|Remote device configuration||Yes (over GPRS), Yes|
|Remote outputs control||Yes (over GPRS), Yes|
|Forced GNSS location update over SMS||Yes|
