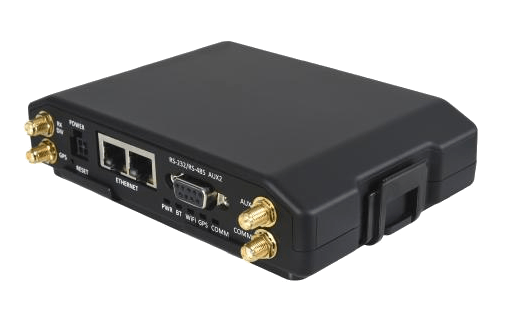

CalAmp LMU-5530

CalAmp LMU-5530 boasts an adaptable platform featuring: 3G/4G broadband routing, cellular gateway functions, a Programmable Event Generation engine, built-in 3-axis g-force measurements, multiple power management sleep modes, leading GPS sensitivity tracking technologies, and multiple interfaces all brought together under a flexible Linux operating system.

Mostrar mais

CalAmp LMU-5530 has the versatility, speed and expandability to meet customers’ ever challenging needs in fixed or mobile broadband applications. With a powerful, lower power, 800MHz ARM9 embedded processor, the LMU-5530 boasts an adaptable platform featuring: 3G/4G broadband routing, cellular gateway functions, a Programmable Event Generation engine, built-in 3-axis g-force measurements, multiple power management sleep modes, leading GPS sensitivity tracking technologies, and multiple interfaces all brought together under a flexible Linux operating system.

The LMU-5530 comes equipped with two Ethernet 10/100 ports, both host and device OTG USB, RS232/RS485 serial port, switched power TTL serial port, two 1-wire busses, seven inputs, seven outputs, and five A/D inputs. The LMU-5530 also supports advanced peripherals including laptops, USB dongles, Mobile Data Terminals (MDT’s), RFID tags, and more.

Location and tracking

  • GPSGLONASS Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 700/800/850/900/1800/1900/2100/2600 MHz
  • 3G / 4G Network

Power supply

Operating Voltage:

  • 9-30 VDC (Start-up, Operating)
  • 8-32 VDC (Momentary)

Power Consumption:

  • <2mA @ 12V (Deep Sleep)
  • 160mA @ 12V (Idle on Network)
  • 270mA @ 12V (Active Tracking)

1000 mAh Li-Ion backup battery

Inputs and outputs

  • 7 Discrete input
  • 5 Analog input
  • 7 Digital outputs
  • 2 1-Wire Interfaces

Other features

  • Remote management
  • LED indication
  • Accessories

Conexão do servidor

Servidor da UEtracker.navixy.com (52.57.1.136)
Servidor dos EUAtracker.us.navixy.com (13.52.37.2)
Porta do servidor47710
Auto cadastroSim

Informação geral

PropósitoVeículo
Peso227 g (8.01 oz.)
Tamanho146x102x40 mm (5.75x4.02x1.57 in)
Antena interna (GNSS)Yes
Antena interna (Conexão)Yes
Antena externa (GNSS)Yes
Antena externa (Conexão)Yes

Conectividade

Status do roamingSim
Nível do sinalSim
Tipo de rede celularHPSA/UMTS 850/900/1900/2100
Geração de rede celular4G, 3G
ID do operadorYes

Informações de localização

Nível de sinal GNSSSim
LBSSim
Localização forçada pelo LBS em preferência ao GPRSSim
Localização GNSS forçada em preferência ao SMSSim
GPSYes
GLONASSYes
GPS assistidoYes

Caracteristicas

Controle remoto das saídasSim
HodômetroSim
Leitura de ID do motoristaSim
Bateria integradaYes
Capacidade da bateria1000 mAh

Interfaces

Entradas digitais8
Número de saídas5
Sensor analógicoSim
Interface RS485Yes
Interface 1-WireYes
