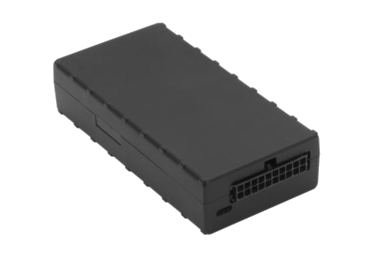

CalAmp LMU-2630

CalAmp LMU-2630 is a next generation telematics gateway that includes a range of wireless and peripheral connectivity options and is equipped with CalAmp’s purpose built vehicle interface technologies for both light and heavy duty vehicles.

Show more

CalAmp LMU-2630 is a fleet tracking unit offers leading edge fleet management features including a triple-axis accelerometer for measuring driver behavior and vehicle impacts while offering the high reliability fleet customers demand.

Location and tracking

  • GPS Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 800/850/900/1700/1900/2100 MHz
  • 2G / 3G Network

Power supply

Operating Voltage:

  • 9-30 VDC (Start-up, Operating)
  • 7-32 VDC (Momentary)

Power Consumption:

  • 7 mA @ 12V <500 uA (deep sleep)
  • 20 mA @ 12V (idle on network)
  • 150 mA @ 12V (active tracking with VBUS active)

Inputs and outputs

  • 5 Discrete input
  • 4 Analog input
  • 3 Digital outputs
  • 1-Wire Interface
  • 2 power TTL ports

Other features

  • Remote management
  • LED indication
  • Accessories

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47710

General information

PurposeVehicle
InstallationProfessional

Housing

Weight80 g (2.82 oz.)
Size94x553x20 mm (3.7x21.77x0.79 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
Assisted GPSYes

Connectivity

Cellular network typeHPSA/UMTS 850/900/1900/2100
Internal antenna (Connection)Yes
Cellular network generation3G, 2G

Interfaces

Number of outputs3
Number of inputs (all types)9
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
1-Wire interfaceYes
Supported
OutputsYes
Supported

Tracking features

Tracking modesInterval, Continuous

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
Network roaming statusYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported
