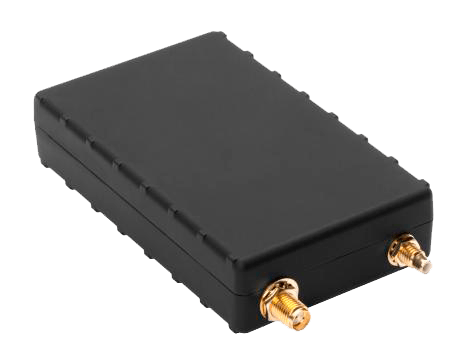

CalAmp LMU-2720

The LMU-2720 fleet tracking unit offers leading edge fleet management features including a 3-axis accelerometer for measuring driver behavior and vehicle impacts while offering the high reliability fleet customers demand.

Show more

The LMU-2700 is a robust fleet device you can count on for AVL applications. The LMU-2700 incorporates GSM/GPRS, CDMA 1xRTT or HSPA wireless communication along with extra sensitive GPS technology in an affordable package. High sensitivity GPS and either internal or external antenna options enables the device to be mounted virtually anywhere for easy, inexpensive installations. An integrated 1,000mAh back-up battery allows for short-term or last-gasp tracking when disconnected from main power.

Location and tracking

The device support GPS, GLONASS, QZSS and is AGPS capable.

Mobile networks

Standard quad-band GSM/GPRS, and also supports CDMA, HSPA.

Power supply

Optional 200 mAh or 1000 mAh back-up battery

Key features

– Packet data (GPRS, CDMA 1xRTT or HSPA and SMS based messaging
– Internal or external GPS and cellular antennas
– High sensitivity GPS (-162dBm)
– Low power sleep modes
– Internal 1000mAh back-up battery
– 3-axis accelerometer for motion, hard braking and impact detection
– 20,000 buffered messages for data logging during coverage loss
– 32 built-in geo-fences
– Dual serial ports
– PEG™ exception-based rules
– Automatic over-the-air unit configuration and firmware download (PULS™)
– Web based device management (PULS™)

Server Integration

EU (
US (
Server port47710


Tamanho90x54x20 mm (3.54x2.13x0.79 in)

GNSS Location



Discrete inputsYes
Analog inputsYes
On request

Tracking features

Tracking modesContinuous
Location by Cell IDYes

Self monitoring

Network signal levelYes
GNSS signal levelYes

Remote management

Server connection setup over SMSYes
Remote device configurationYes (over GPRS)
Remote outputs controlYes (over GPRS)
Activate a device on the platform Try it now
Haven’t found your device? We can add it Integrate
