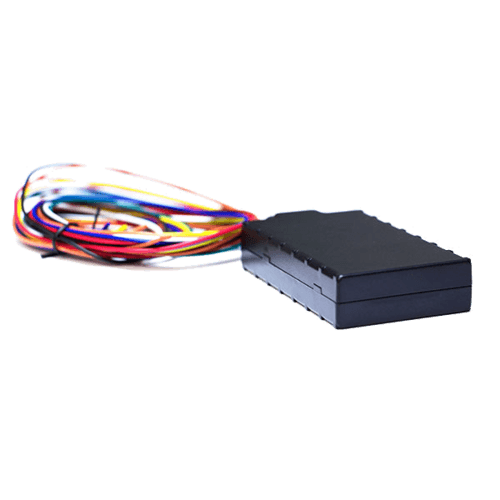

CalAmp LMU-800

LMU-800 is a compact and economical vehicle tracker. Easy installation and various features make this device a perfect and cost-effective solution for vehicle tracking.

Show more

Location and tracking

  • GPS
  • Continuous tracking mode
  • LBS

Mobile networks

  • GSM/GPRS 850/900/1800/1900
  • HSPA/UMTS 800/850/900/1700/1900/2100
  • 2G

Power supply

  • Build-in 200 mAh battery

Inputs and outputs

  • 3 digital inputs
  • 1 internal VCC monitor
  • 3 digital outputs

Other features

  • GPS, Cellular LED indication
  • Operating temperature -30° to + 75° C

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47710

General information

PurposeVehicle
InstallationProfessional

Housing

Weight106 g (3.74 oz.)
Size89x54x16 mm (3.5x2.13x0.63 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
Assisted GPSYes

Connectivity

Cellular network typeGSM 850/900/1800/1900
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs3
Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity200 mAh
Built-in batteryYes

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported

Remote management

Server connection setup over SMSYes
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes
