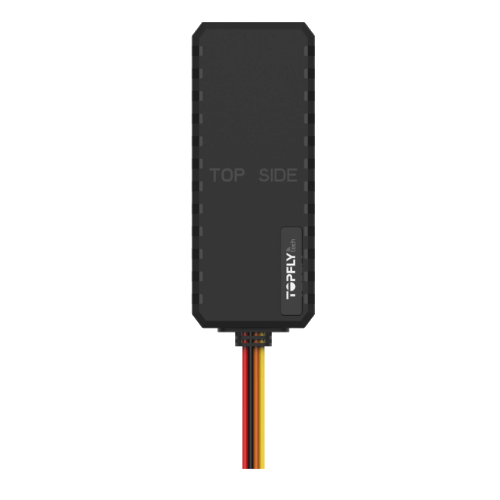

TopFlyTech TLW1-4

TLW1-4 is the basic hardwired tracker for tracking powered assets and vehicles, with ignition detection and output for a relay. It can also monitor the temperature, humidity, door status, etc when working with BLE sensors. It’s a widely used model in fleet management, logistics, cold chain, etc, to increase work efficiency and save costs.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous and interval tracking modes
  • LBS

Mobile networks

  • 900/1800MHz
  • 4G

Power supply

  • 7 – 32V DC
  • Li-Polymer 200 mAh/ 3.7V internal battery

Inputs and outputs

  • 2 Universal inputs
  • RS232 interface
  • 1 Digital outputs

Other features

  • Emergency button
  • Remote management

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47744

General information

PurposeVehicle
InstallationProfessional

Housing

Peso48 g (1.69 oz.)
Tamanho87X35X17.5 mm (3.43x1.38x0.69 in)

GNSS Location

Antena interna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Tipo de rede celularGSM Quad Band
Antena interna (Conexão)Yes
Geração de rede celular4G

Interfaces

Number of RS232 interfaces1
Number of outputs1
Number of inputs (all types)1
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Interface RS232Yes
Supported

Hardware extras

Driver ID readingYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
