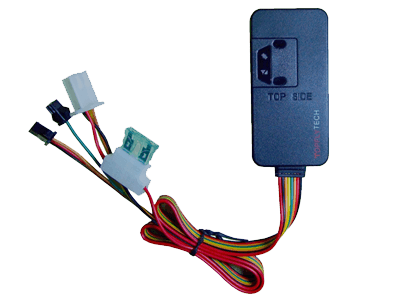

TopFlyTech T8803 PRO

TFT T8803PRO is a useful tracker for vehicle tracking with a lot of features. With no external antennas, the installation process is quite easy.

Show more

PRO model

T8803 “PRO” model is an upgraded version of a T8803A, that features more sensor alarms (such as towing and vibration alarm), also it has one additional input, G-sensor, integrated SOS and Mic cable, smart sleep mode and a newer protocol, which allows to optimize GPRS consumption.

It also has IP66 certification, so it’s waterproof.

Package content

The package contents:

  • GPS tracker
  • One digital input extension line (170 cm)
  • Sponge double-side adhesive tape
  • Power supply extension line (170 cm)

Also as an option, manufacturer offers

  • Engine block relay
  • Microphone and SOS line

Location and tracking

T8803PRO is embedded with GPS and doesn’t have support of GLONASS and alternative systems.  It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Tracking modes in T8803PRO model has time/interval tracking. And additionally it supports direction variation tracks and distance interval tracks. Also it has an option for sms reports on time interval.

Mobile networks

With Quad-band GSM 2G module T8803PRO can be operated all over the world.

Power supply

External power supply might be 6-36V, which makes it possible to install T8803 both on cars and vans.

T8803PRO also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Remote management

TFT T8803PRO tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8803 has two LEDs:

  • Red LED indicates GSM/GPRS mode
  • Blue LED indicates GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47744

General information

PurposeVehicle
InstallationProfessional

Housing

Weight70 g (2.47 oz.)
Size81x38.5x13 mm (3.19x1.52x0.51 in)
Waterproof classIP6X

GNSS Location

Internal antenna (GNSS)Yes
External antenna (GNSS)No
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
External antenna (Connection)No
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity465 mAh
Built-in batteryYes
Emergency buttonOptional
Supported
Detach sensorNo
Non-volatile memoryNo

Hardware extras

Fuel level sensor readingYes
Supported
Voice listeningOptional
Supported
Driver ID readingNo

Tracking features

Tracking modesContinuous
Smart power consumptionNo
OdometerYes
Supported
ECO drivingNo

Events monitoring

Battery lowYes
Supported
External power cut offNo
Device switched on/offYes
Supported
TowingYes
Supported
Fall/ShakeYes
Supported

Self monitoring

GNSS satellites fixedNo
External power source voltageNo

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Message exchange formatBINARY
Firmware update OTANo
Forced LBS location update over GPRSNo
Forced GNSS location update over SMSNo

Certification

CEYes
FCCYes
EACYes
