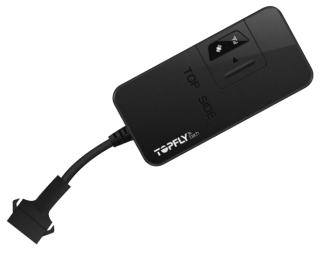

TopFlyTech T8808A

TopFlyTech model T8808A is a compact and affordable tracker for satellite monitoring of vehicles, motor bikes and other mobile objects.

Show more

It has no external antennas, so the installation process is quite simple.

T8808 versions: “A” and “B”

In comparison to basic model T8808B, which has no outputs, the model T8808A features one output – for engine block relay or any other control device:

  • T8808A has 4 pin connector: Power, GND, ACC (orange) and Output (yellow)

Package content

The package contents:

  • GPS tracker
  • 4-pin harness (T8808A model)
  • Sponge double-side adhesive tape
  • Power supply extension line

Also as an option, manufacturer offers engine block relay for T8808A model.

Location and tracking

T8808A is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

With Quad-band GSM 2G module T8808A can be operated all over the world.

Power supply

With a voltage range 6-36V, it is possible to install T8808 both on cars and vans.

T8808 also features a built-in rechargeable backup battery. When fully charged it ensures about 2-3 hours of device operation (in normal conditions). When external power is cut off, the tracker sends location to server.

To switch the tracker OFF you need to remove the SIM card, after that in 5-10 seconds the device will switch off.

Local and remote management

T8808 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8808 has two LEDs:

  • Red LED indicates GSM/GPRS mode
  • Blue LED indicates GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.

Additional notes

The “ACC” wire of T8808 must be correctly connected. According to it, the device determines that vehicle is in use, switches GPS module to active mode and reports about its position to tracking server.

If there is no “ACC” signal, GPS module goes off and device does not send GPS coordinates. However, Cell ID information is updated regardless the “ACC” status.

There is also a “lifehack” which can be used for testing purposes or during the installation process: if you’re shaking the device within 60-70 seconds, GPS module will be enabled by accelerometer activity (regardless the “ACC” state) and device will update its location.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47744

General information

PurposeVehicle
InstallationProfessional

Housing

Weight70 g (2.47 oz.)
Size81x38.5x13 mm (3.19x1.52x0.51 in)
Waterproof classIP6X

GNSS Location

Internal antenna (GNSS)Yes
External antenna (GNSS)No
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
External antenna (Connection)No
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity280 mAh
Built-in batteryYes
Emergency buttonOptional
Supported
Detach sensorNo
Non-volatile memoryNo
Engine block relayYes
Supported

Hardware extras

Fuel level sensor readingYes
Supported
Voice listeningOptional
Supported
Driver ID readingNo
Fuel temperature sensor readingNo
Engine block special controlYes
Supported

Tracking features

Tracking modesContinuous
Smart power consumptionNo
OdometerNo
ECO drivingNo

Events monitoring

Battery lowYes
Supported
External power cut offNo
Device switched on/offYes
Supported

Self monitoring

GNSS satellites fixedNo
External power source voltageNo

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Message exchange formatBINARY
Firmware update OTANo
Forced LBS location update over GPRSNo
Forced GNSS location update over SMSNo

Certification

CEYes
FCCYes
EACYes
