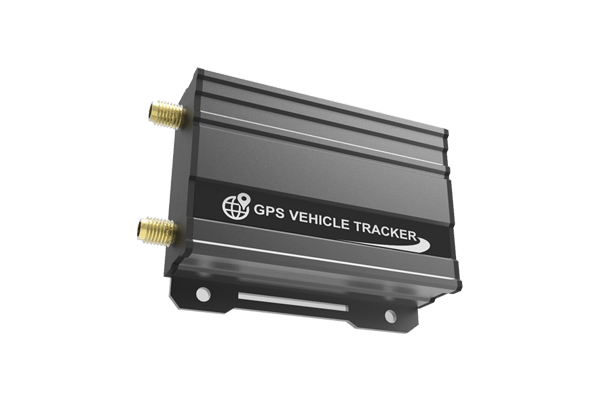

Concox X1 provides you up-to-the-minute speed, location updates and various alerts and reports. Apart from functions like two-way talk, voice monitoring, X1 is also equipped with multiple interfaces for camera, LCD, RFID, etc. It is an invaluable tool for fleet management, logistics, car rental and buses.
Concox X1 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.
The standard package contains:
- GPS Antenna
- GSM Antenna
- User Manual
Location and tracking
Concox X1 is embedded with GPS, it doesn’t support GLONASS or alternative systems.
As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
Concox X1 has a Quad-band GSM 2G that allows to operate it all over the world.
X1 features a rechargeable 600 mAh battery. When fully charged it ensures about 3-5 hours of device operation (in normal conditions).
Local and remote management
Concox X1 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
Concox X1 has three LED indicating:
- Backup battery charge
- GSM/GPRS mode
- GPS signal reception
|EU platform||tracker.navixy.com (126.96.36.199)|
|US platform||tracker.us.navixy.com (188.8.131.52)|
|Weight||160 g (5.64 oz.)|
|Size||90x60x27 mm (3.54x2.36x1.06 in)|
|External antenna (GNSS)||Yes|
|Cellular network type||GSM Quad Band|
|External antenna (Connection)||Yes|
|Cellular network generation||2G|
|Number of RS232 interfaces||1|
|Number of outputs||1|
|Number of inputs (all types)||4|
|Battery capacity||600 mAh|
|Driver ID reading||Yes|
|External temperature sensor reading||Yes|
|Location by Cell ID||Yes|
|External power cut off||Yes|
|Network signal level||Yes|
|GNSS signal level||Yes|
|External power source voltage||Yes|
|Internal battery level||Yes|
|CAN/OBDII reader type||Yes|
|Server connection setup over SMS||Yes|
|Remote device configuration||Yes (over GPRS)|
|Remote outputs control||Yes (over GPRS), Yes|
|Forced GNSS location update over SMS||Yes|
