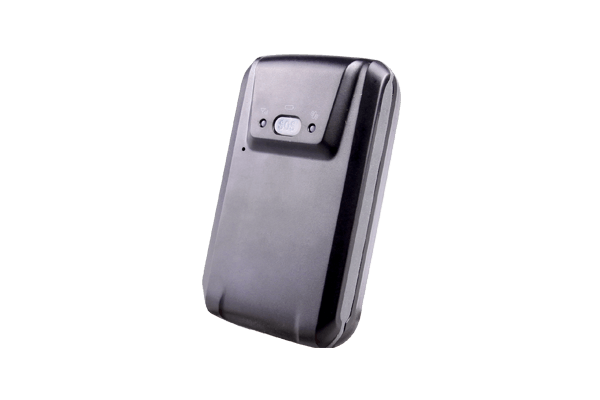

Concox GT03C

Concox GT03C magnetic GPS tracker is extremely easy and flexible to install using strong magnetic design. IP65 protection allows it to operate even in extreme working environment. With large built-in battery, the device is suitable for asset tracking, vehicle tracking, cargo tracking, race motorcycle tracking, etc.

Mostrar mais

Package contents

Concox GT03C is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

The standard package contains:

  • Device
  • Power cord
  • User Manual

Location and tracking

Concox GT03C is embedded with GPS, it doesn’t support GLONASS or alternative systems.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Concox GT03C has a Quad-band GSM 2G that allows to operate it all over the world.

Power supply

GT03C features a rechargeable 2500 mAh battery. When fully charged it ensures about a day of device operation (in normal conditions).

Local and remote management

GT03C can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Concox GT03C has two LED indicating:

  • GSM/GPRS mode
  • GPS signal reception

Conexão do servidor

Servidor da UEtracker.navixy.com (52.57.1.136)
Servidor dos EUAtracker.us.navixy.com (13.52.37.2)
Porta do servidor47755
Auto cadastroSim

Informação geral

PropósitoDispositivo
Peso96 g (3.39 oz.)
Tamanho91.5x57x24 mm (3.6x2.24x0.94 in)
Antena interna (GNSS)Yes
Antena interna (Conexão)Yes

Conectividade

Nível do sinalSim
Tipo de rede celularGSM Quad Band
Geração de rede celular2G

Informações de localização

Nível de sinal GNSSSim
LBSSim
Localização forçada pelo LBS em preferência ao GPRSSim
Localização GNSS forçada em preferência ao SMSSim
GPSYes

Caracteristicas

HodômetroSim
Bateria integradaYes
Capacidade da bateria2600 mAh
