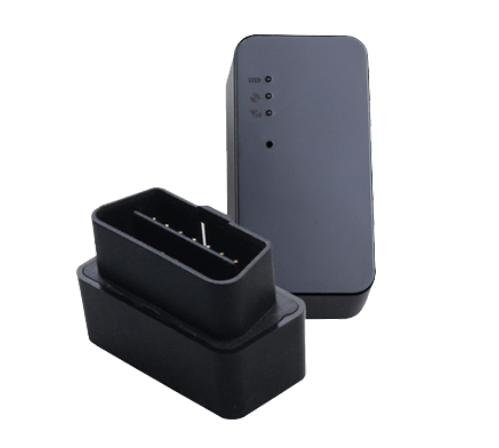

Concox OB22

OB22 is an easy to fit plug & play OBD port tracker with superior location, tracking, reporting, logging, and security capabilities. Utilizing the GSM and GPRS communication network along with GPS technology, it is an ideal solution for leased vehicles or large fleets.

Show more

Location and tracking

  • GPS
  • Continuous tracking mode
  • LBS

Mobile networks

  • 850/900/1800/1900 MHz
  • 2G / 3G

Power supply

  • Build-in battery lithium-polymer battery 50mAh/3.7v
  • External power supply 9-36VDC/32mA(12VDC)

Other features

  • Compact size
  • Local and remote management
  • LED indication Power, GPS, GSM

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755

General information

PurposeVehicle
InstallationDIY

Housing

Peso30 g (1.06 oz.)
Tamanho45x22.5x30 mm (1.77x0.89x1.18 in)

GNSS Location

Antena interna (GNSS)Yes
GPSYes

Connectivity

Tipo de rede celularGSM Quad Band
Antena interna (Conexão)Yes
Geração de rede celular3G, 2G

Interfaces

Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
ID do operadorYes
Supported
GNSS signal levelYes
Supported

CAN/OBDII reading

CAN/OBDII parametersFuel level, fuel consumption, engine RPM and other

Remote management

Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported
