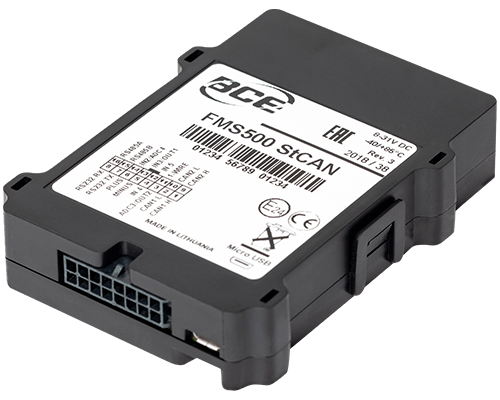

BCE FMS500 StCan

FMS500 StCAN is a device with GPS/Glonass and GSM connectivity, designed for object tracking. It is able to acquire information on object location, speed, direction, etc. and transfer the data via GSM network. Digital and analog inputs of the device may be used to connect different external sensors/devices. Outputs of the device may be used to control external equipment remotely.

Show more

Flexible configuration allows users/dealers to adjust the device to meet their specific requirements. All device settings and firmware are updated remotely via GPRS. It is possible to create setting templates for groups of vehicles, use mass updates and create unique device operation logic, fulfilling requirements of most cases on the market.

Location and tracking

  • GPS/GLONASS support
  • Continuous tracking mode
  • LBS support

Mobile networks

  • 2G Network
  • GSM Quad Band

Power supply

  • Build-in battery 700mAh (optional)
  • External power supply (8 – 31V)

Inputs and outputs

  • 4 Digital input
  • 2 Analog inputs
  • 2 Outputs

Other features

  • 2 CAN lines operating simultaneously
  • Internal antennas
  • GSM jamming detection

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47727

General information

PurposeVehicle
InstallationProfessional

Housing

Size68x91x19 mm (2.68x3.58x0.75 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs2
Number of inputs (all types)7
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported
Mobile signal jammingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII parametersFuel level, fuel consumption, engine RPM, throttle position and other

Remote management

Server connection setup over SMSYes
Supported
Remote outputs controlYes (over GPRS)
Supported
