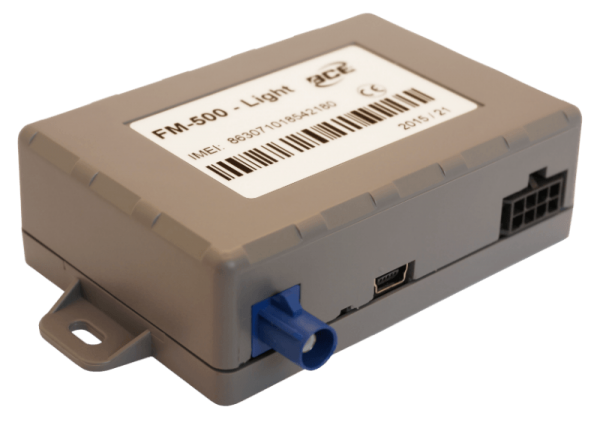

BCE FM-500 Light+

BCE FM-500 Light+ is a vehicle tracking and controlling device with multiple functions. It covers a wide range of applications and requirements of professional users by providing configurable inputs/outputs and reliable GPRS communication ability.

Mostrar mais

Package contents

BCE FM-500 Light+ package content includes:

  • BCE FM-500 Light+ device
  • External GPS antenna
  • Wires + 1A Fuse

Also, the device can be sent with optional internal back up 700mAh battery, as claimed by manufacturer.

Location and tracking

FM-500 Light+ model is embedded with GPS chip and it supports GLONASS as well. It also supports Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

With a Quad-band GSM module BCE FM-500 Light+ can operate all over the world where 2G networks are supported.

 Features

BCE FM-500 Light+ model features all functions of BCE FM-500 Light device (as well as 1-Wire (iButton)), but also it has few additions:

  • RS-232
  • EIA-485

It allows users/dealers to adjust the device to meet their specific requirements.

Power supply

External power supply range might be 9V – 40V, which makes possible to install device both on cars and vans.

Local and remote management

BCE FM-500 Light+ can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Also, you can configure and manage the device via the manufacturer’s software “BCE configurator”.

LED Indication

BCE FM-500 Light+ has one LED for GSM/GPS status.


Conexão do servidor

Servidor da UEtracker.navixy.com (52.57.1.136)
Servidor dos EUAtracker.us.navixy.com (13.52.37.2)
Porta do servidor47727
Auto cadastroSim

Informação geral

PropósitoVeículo
Peso73 g (2.58 oz.)

Conectividade

Nível do sinalSim
ID do operadorSim

Informações de localização

Nível de sinal GNSSSim
LBSSim

Caracteristicas

Controle remoto das saídasSim
HodômetroSim
AcelerômetroSim
Leitura de ID do motoristaSim

Interfaces

Entradas digitais8
Número de saídas2
Sensor analógicoSim
Sensor de frequênciaSim
