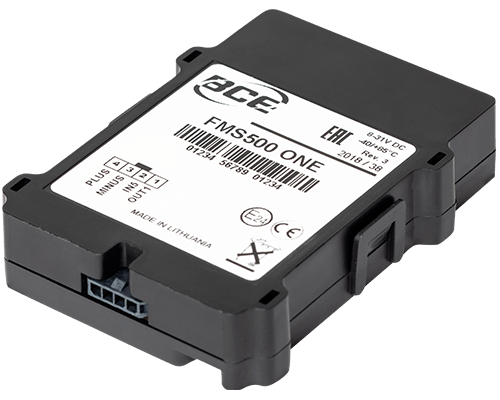

BCE FMS500 ONE

BCE FMS500 ONE is a vehicle tracker with ignition monitoring, output control and jamming detection feature. BCE FMS500 ONE is able to help you in driving quality monitoring by using car crash detections and Eco driving. Device works in 8-31 V voltage range. Also BCE FMS500 ONE tracker supports LBS and A-GPS technologies and protection against overvoltage.

Show more

Location and tracking

  • GPS/GLONASS support
  • Continuous tracking mode
  • LBS support

Mobile networks

  • 2G Network

Power supply

  • Build-in battery 700mAh (optional)
  • External power supply (8 – 31V)

Inputs and outputs

  • 1 Digital input
  • 1 Output

Other features

  • Eco driving
  • Internal antennas
  • GSM jamming detection

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47727

General information

PurposeVehicle
InstallationProfessional

Housing

Size68x91x19 mm (2.68x3.58x0.75 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)1
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
Car crashYes
Supported
Device switched on/offYes
Supported
Mobile signal jammingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote outputs controlYes (over GPRS)
Supported
