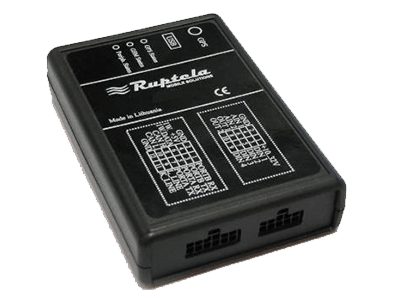

Ruptela FM-Tco3
Ruptela FM-Tco3 is a Terminal with GPS / GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. It is important to mention that FM-Tco3 has additional inputs and outputs, which let control and monitor other remote objects, 1-Wire® interface and CAN-bus interface integrated (for trucks FMS interface data acquisition).
This terminal is perfectly suitable for applications where location acquirement of remote objects is needed.
It also has 2 simplified RS232 ports for connecting additional equipments such as Personal Navigation Device, digital fuel level sensor or other (special firmware is needed for this).
Package contents
Ruptela FM-Tco3 device is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation. The package contains:
- The FM-Tco3 device.
- 10 PIN plug with wires for power supply and I/O connection
- Magnetic GPS antenna with sticker.
- 12 pin plug with wires for CAN-bus, 1-Wire, simplified RS232 and K_line connection.
Additional accessories
There are a few standard accessories available for Ruptela FM-Tco3 that is not included in the package:
- Analog Temperature sensor;
- 1-Wire Digital Temperature Sensor DS18B20 / DS18S20;
- I-Button.
Special features
- Any element event triggers (external sensor, input, speed, temperature, etc.);
- Smart profile switching (GSM operator or any element depended);
- Highly configurable data acquisition and sending (incl. data from tachograph*);
- Real-time process monitoring;
- Authorized number list for remote access;
- Firmware update via GPRS or Mini USB port;
- Configuration update via GPRS, SMS or Mini USB port;
- TCP/IP or UDP/IP protocol support;
- 5 000 record storing.
* Data from tachograph: vehicle’s VIN and registration numbers, driver’s identification number, driver’s state (Rest/Work/Drive/Available), driver card status (inserted/removed), total distance, trip distance, speed, RPM.
Power supply
Ruptela FM-Tco3 model supports 12/24V power supply which makes it possible to install the device both on cars and vans.
LED Indication
Ruptela FM-Tco3 device has two LEDs:
- GPS LED
- GSM LED
Conexión del servidor
| Servidor de la UE | tracker.navixy.com (52.57.1.136) |
| Servidor de USA | tracker.us.navixy.com (13.52.37.2) |
| Puerto de servidor | 47747 |
| Auto registro | Sí |
Información general
| Finalidad | Vehículo |
| Peso | 110 g (3.88 oz.) |
Conectividad
| Nivel de señal | Sí |
| ID del operador | Sí |
Información de ubicación
| Nivel de señal GNSS | Sí |
| LBS | Sí |
Características
| Control remoto de las salidas | Sí |
| Odómetro | Sí |
| Acelerómetro | Sí |
| Lectura del identificador del conductor | Sí |
Interfaces
| Entradas digitales | 4 |
| Número de salidas | 2 |
| Sensor analógico | Sí |
