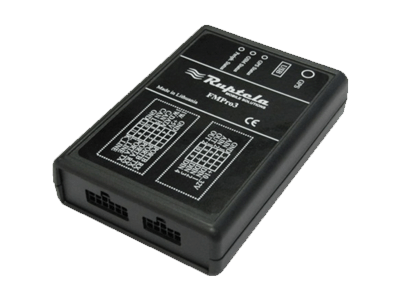

Ruptela FM-Pro3

Ruptela FM-Pro3 is a terminal with GPS / GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. This terminal is perfectly suitable for applications where location acquirement of remote objects is needed. It is important to mention that FM-Pro3 has additional inputs and outputs, which let control and monitor other remote objects.

Mostrar más

It also has 2 simplified RS232 ports to connect additional equipment such as Personal Navigation Device, digital fuel level sensor or other (special firmware is required for this).

Package contents

Ruptela FM-Pro3 device is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation. The package contains:

  • The FM-Pro3 device;
  • 10 PIN plug with wires for power supply and I/O connection;
  • Magnetic GPS antenna with sticker;
  • 12 PIN plug with wires for CAN-bus, 1-Wire, simplified RS232 and K_line connection.

Accessories

There are a few standard accessories available for FM-Pro3 that are not included in the package:

  • Analog Temperature sensor;
  • 1-Wire Digital Temperature Sensor DS18B20 / DS18S20;
  • I-Button.

Features

  • Any element event triggers (external sensor, input, speed, temperature, etc.);
  • Smart profile switching (GSM operator or any element depended);
  • Highly configurable data acquisition and sending;
  • Real-time process monitoring;
  • Authorized number list for remote access;
  • Firmware update via GPRS or Mini USB port;
  • Configuration update via GPRS, SMS or Mini USB port;
  • TCP/IP protocol support;
  • 5 000 record storing.

Power supply

Ruptela FM-Pro3 model supports 12/24V power supply which makes it possible to install the device both on cars and vans.

LED Indication

Ruptela FM-Pro3 device has two LEDs:

  • GPS LED
  • GSM LED

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47747
Integrado15/09/2014

Información general

PurposeVehículo, Dispositivo
InstalaciónProfesional

Alojamiento

Peso140 g (4.94 oz.)
Tamaño111x75x25 mm (4.37x2.95x0.98 in)

Localización GNSS

Antena externa (GNSS)
GPS

Conectividad

Tipo de la red del celularGSM Quad Band
Antena interna (Conexión)
Generación de red celular2G

Interfaces

Entradas digitales
Soportado
Entrada análoga
Soportado

Características de hardware

Capacidad de batería800 mAh
Batería integrada

Hardware extras

Lectura del identificador del conductor
Soportado

Monitoreo de eventos

Cambio de entrada
Soportado

Automonitoreo

Nivel de señal
Soportado
Nivel de señal GNSS
Soportado
Satélites GNSS fijados
Soportado
Voltaje de alimentación externa
Soportado
Nivel de batería interna
Soportado

Leyendo CAN/OBDII

Tipo de lector CAN/OBDII
Soportado
Parámetros CAN/OBDIIFuel level, fuel consumption, engine RPM, throttle position and other

Administración remota

La conexión con servidor por SMS
Soportado
Control remoto de las salidasSí (por SMS), Sí

Certificacón

CE
