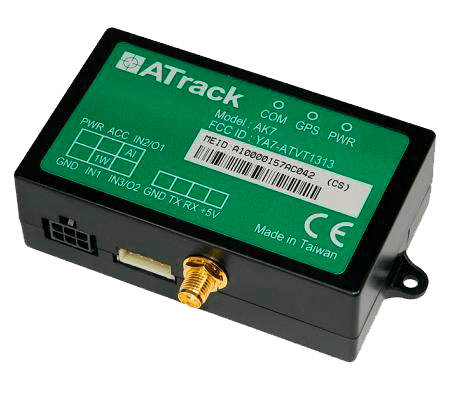

ATrack AK7

ATrack AK7 is a vehicle Telematics device/GPS tracker with GPS and UMTS/HSPA/CDMA communication which is able to monitor vehicle location and remote control via UMTS / HSPA / CDMA network. With its intelligent event control engine, users can define various combinations of vehicle conditions and generate various actions to meet their unique requirements.

Show more

Package contents

ATrack AK7 package contains the following device/accessories:

  • Device
  • Power/IO Cable
  • Serial Cable

Product features:

  • Small and easy installation
  • Data communication by SMS/USSD/TCP/UDP
  • High accuracy GPS positioning
  • GSM jamming detection
  • Built-in 3-axis G-sensor
  • FOTA firmware upgrade using FTP
  • Configurable Real Time Tracking & Logging
  • Intelligent event control engine
  • 1-Wire® protocol supported
  • 3 Configurable GPIOs
  • Roaming preference settings
  • Harsh driving behavior events
  • Configurable power management
  • 32 user defined geofences
  • Support Garmin® FMI
  • Support external fuel level sensor

Location and tracking

ATrack AK7 is embedded with GPS. It does not support A-GPS, or GLONASS technology.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

ATrack AK7 has a Quad-band GSM 2G/3G module that allows to operate it all over the world.

Power supply

External power supply might be 8-40V, which makes possible to use ATrack AK7 with all car models.

Local and remote management

ATrack AK7 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS. It also supports firmware update over the air (FOTA).

LED Indication

ATrack AK7 model has three LEDs:

  • Power LED – indicates power status
  • GPS LED – indicates GPS signal
  • GSM LED – indicates GSMS signal

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47712

General information

PurposeVehicle
InstallationProfessional

Housing

Weight100 g (3.53 oz.)
Size80x48x26 mm (3.15x1.89x1.02 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 2G

Interfaces

Number of RS232 interfaces1
Number of outputs3
Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
RS232 interfaceYes
1-Wire interfaceYes
OutputsYes
Supported

Hardware features

Battery capacity650 mAh
Built-in batteryYes

Hardware extras

Driver ID readingYes
On request
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Mobile signal jammingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Firmware update OTAYes
Forced GNSS location update over SMSYes
On request

Certification

EACYes
