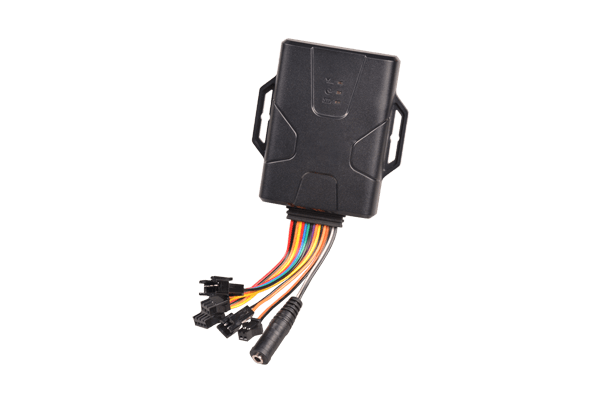

AMGPS HF-Talk Vehicle GPS Tracker is a high-end multifunctional vehicle GPS tracker with solid performance for reasonable price. In addition to GPS and AGPS tracking. This GPS tracker device supports door status detection, two-way communication as well as SOS call.
AMGPS HF-Talk is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.
The standard package contains:
- Power cord
- 4-pin Relay
- SOS alarm cable & button
- User Manual
- Extension cable
Location and tracking
AMGPS HF-Talk is embedded with GPS, it doesn’t support GLONASS or alternative systems.
As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
AMGPS HF-Talk has a Quad-band GSM 2G that allows to operate it all over the world.
HF-Talk features a rechargeable 800 mAh battery. When fully charged it ensures about 3-5 hours of device operation (in normal conditions).
Local and remote management
HF-Talk can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
AMGPS HF-Talk has three LED indicating:
- Backup battery charge
- GSM/GPRS mode
- GPS signal reception
|EU platform||tracker.navixy.com (126.96.36.199)|
|US platform||tracker.us.navixy.com (188.8.131.52)|
|Weight||615.5 g (21.71 oz.)|
|Size||93x76x18 mm (3.66x2.99x0.71 in)|
|Internal antenna (GNSS)||Yes|
|Cellular network type||GSM Quad Band|
|Internal antenna (Connection)||Yes|
|Cellular network generation||2G|
|Number of outputs||2|
|Number of inputs (all types)||8|
|Battery capacity||800 mAh|
|External temperature sensor reading||Yes|
|Location by Cell ID||Yes|
|External power cut off||Yes|
|Network signal level||Yes|
|GNSS signal level||Yes|
|External power source voltage||Yes|
|Internal battery level||Yes|
|Server connection setup over SMS||Yes|
|Remote device configuration||Yes (over GPRS)|
|Remote outputs control||Yes (over GPRS), Yes|
|Forced GNSS location update over SMS||Yes|
