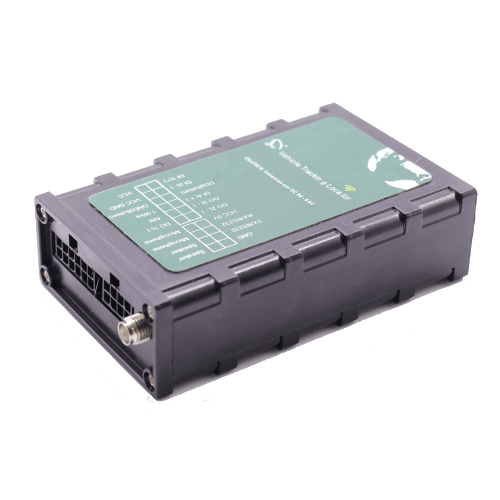

AMGPS LTB-2 is a cost-effective vehicle tracking device.
Package contents include:
- GPS Antenna
- Plug-in power wires
Location and tracking
AMGPS LTB-2 model is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology or LBS services.
The tracker supports turnings. It will update the positions automatically to web server once the vehicle changing driving direction over pre set angle to form a smooth trajectory consistent with the actual road.
With Quad-band GSM 2G module AMGPS LTB-2 can be operated all over the world.
External power supply might be 9-50V, with an over-voltage protection, which makes possible to install LTB-2 both on cars and vans.
LTB-2 also features a built-in rechargeable backup battery. When fully charged it ensures about 4-5 hours of device operation (in normal conditions).
Local and remote management
AMGPS LTB-2 can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
AMGPS LTB-2 has following features:
- Send data to two servers simultaneously.
- 3-Axis Digital Accelerometer movement status monitoring.
- Firmware upgrade by OTA.
- Support DC 9v – 50v , over-voltage protection.
- 16Mb Flash Memory( stores 4000 pcs or so data).
- Fuel/oil level detection with high accuracy.
- user defined settings on I/O ports: digital input, digital output, analog input.
The manufacturer offers original accessories, such as:
- Door Sensor
- Fuel Sensor
- Temperature sensor
- iButton Reader and iButton tags
- RFID reader and RFID tags
- LED lamp
- Weighing sensor
- Fuel consumption meter
|EU platform||tracker.navixy.com (188.8.131.52)|
|US platform||tracker.us.navixy.com (184.108.40.206)|
|Weight||100 g (3.53 oz.)|
|Size||89x55x25 mm (3.5x2.17x0.98 in)|
|External antenna (GNSS)||Yes|
|Cellular network type||GSM Quad Band|
|Internal antenna (Connection)||Yes|
|Cellular network generation||2G|
|Number of outputs||3|
|Number of inputs (all types)||6|
|Battery capacity||800 mAh|
|Driver ID reading||Yes|
|External power cut off||Yes|
|SIM card slot open||Yes|
|Network signal level||Yes|
|GNSS signal level||Yes|
|External power source voltage||Yes|
|Internal battery level||Yes|
|Server connection setup over SMS||Yes|
|Remote device configuration||Yes (over GPRS), Yes|
|Device ID type||Static (IMEI), Static|
|Firmware update OTA||Yes|
|Forced GNSS location update over SMS||Yes|
