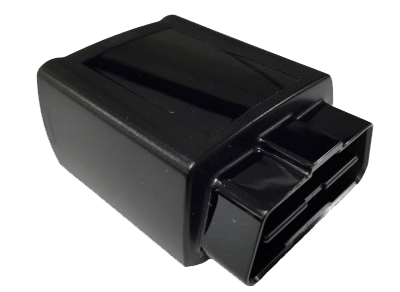

Xirgo XT2460G OBDII
Xirgo XT2460G is the most versatile and economical diagnostic & monitoring device available today for communicating vital vehicle information to owners via ubiquitous UMTS networks. With an integrated GPS engine, cellular and GPS antennas, and integrated OBDII interface, the XT2460G is the ultimate solution for fleet managers in need of monitoring location, speed, and many other codes available on the OBD port of vehicles.
Location and tracking
Xirgo XT2460G is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology.
With a highly sensitive GPS engine along with an integrated GPS antenna and multiple OBDII protocols supported, Xirgo XT2460 3G can be installed in majority of vehicles that ware manufacture from 1996 and up.
With Six-band GSM 3G module Xirgo XT2460G can be operated all over the world both in 2G and 3G networks.
In addition to support for open OBD II standard parameters the XT2460G has additional functionality to support OEM proprietary parameters. This gives our customers unrivaled versatility for providing additional information from the vehicle BUS such as true odometer and seat belt status.
With an integrated J1962 connector, an extremely compact design powered through the OBD port, and low power consumption, the XT2460G can be installed in a matter of seconds which substantially reduces installation cost.
Xirgo XT2460G has following features:
- 3G Network (UMTS/HSPA)
- 3G Bands 850/1900 MHz
- LED status indicators for GPS lock, GSM registration and OBD II communication
- Over-the-air firmware upgrade
- Supports SMS, UDP, FTP
- Supports all J1962 OBD Pins
- 3-axis Accelerometer and Motion Detector
- Integrated GPS receiver and antenna for tracking applications
- Audible Feedback (Buzzer)
- Optional 250 mAh backup battery
External power supply might be 6-24V, which makes possible to use Xirgo XT2460G with all car models.
Local and remote management
With its highly mature firmware, Xirgo XT2460 3G supports SMS, UDP, FTP and is capable of firmware update and configuration over-the-air.
In case you are not able to configure device over the air, manual management over SMS-commands and configuration software is also available.
|EU platform||tracker.navixy.com (22.214.171.124)|
|US platform||tracker.us.navixy.com (126.96.36.199)|
|Special form factor||OBDII Dongle|
|Weight||55 g (1.94 oz.)|
|Size||45.7x38.1x25.4 mm (1.8x1.5x1 in)|
|Internal antenna (GNSS)||Yes|
|Cellular network type||GSM Six Band|
|Internal antenna (Connection)||Yes|
|Cellular network generation||3G, 2G|
|Battery capacity||250 mAh|
|External power cut off||Yes|
|Network signal level||Yes|
|GNSS signal level||Yes|
|External power source voltage||Yes|
|Internal battery level||Yes|
|CAN/OBDII parameters||Fuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other|
|Check engine light||Yes|
|DTC codes reading||Yes|
|Remote device configuration||Yes (over SMS)|
|Firmware update OTA||Yes|
|Forced GNSS location update over SMS||Yes|
