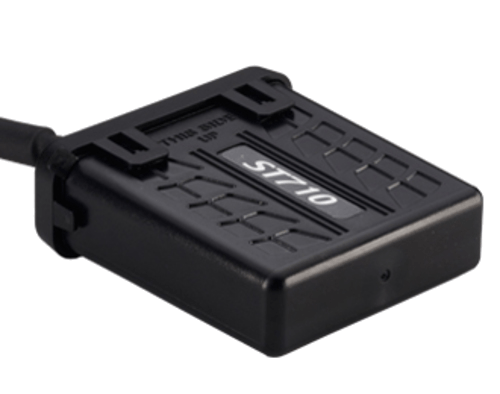

Suntech ST710

ST710 is an economical tracking device that is designed with cost-competitive components like a simplified event line. This low-cost vehicle tracker can efficiently provide a better solution for automotive insurance and fleet management.

Show more

Location and tracking

  • GPS
  • Interval tracking mode
  • LBS

Mobile networks

  • RCZ2 -> TX: 902.2 MHz, RX: 905.2 MHz
  • RCZ4 -> TX: 920.8 MHz, RX: 922.3 MHz

Power supply

  • Build-in battery 220mAh Li-ion
  • External power supply DC 8 ~ 33 V

Inputs and outputs

  • 2 GPIO

Other features

  • Emergency button
  • Protection against ESD and overvoltage
  • LED indication
  • Operating temperature -30°C ~ +85°C

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47678

General information

PurposeVehicle
InstallationProfessional

Housing

Weight70 g (2.47 oz.)
Size53x61x20.7 mm (2.09x2.4x0.81 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs2
Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
1-Wire interfaceYes

Hardware features

Battery capacity220 mAh
Built-in batteryYes
Supported
Emergency buttonYes
Supported
AccelerometerYes

Hardware extras

Emergency buttonYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesInterval
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Remote outputs controlYes (over GPRS)
Supported
