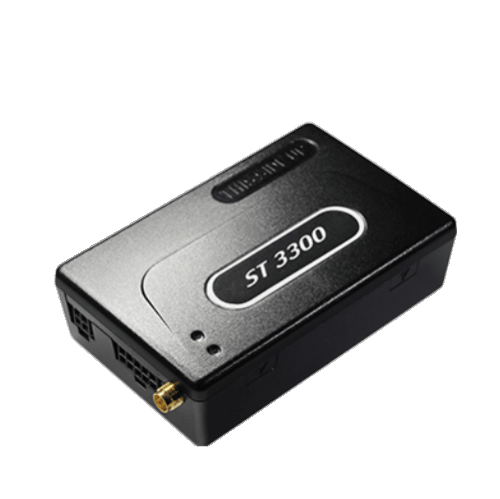

Suntech ST3300

Suntech ST3300 can be used for various vehicle applications from stolen vehicle recovery to fleet finance management.

Show more

Location and tracking

  • GPS support
  • Continuous tracking mode

Mobile networks

  • 3G Network

Power supply

  • 450mAh Ni-MH internal battery
  • External power supply (DC 8 V ~ 33 V)

Inputs and outputs

  • 4 Discrete inputs
  • 2 Digital outputs

Other features

  • 1-Wire interface
  • Remote management
  • RS232

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47728

General information

PurposeVehicle
InstallationProfessional

Housing

Weight115 g (4.06 oz.)
Size90.5x58x26 mm (3.56x2.28x1.02 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G

Interfaces

Number of RS232 interfaces1
Number of outputs2
Number of inputs (all types)4
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
RS232 interfaceYes
1-Wire interfaceYes

Hardware extras

Driver ID readingYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesContinuous
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
On request
