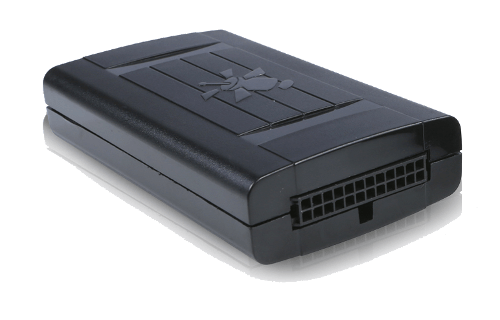

Starcom Helios Advanced

Starcom Helios Advanced is a compact but powerful vehicle tracker suitable for fleet management and security.

Show more

Location and tracking

  • GPS, GLONASS
  • Interval tracking mode

Mobile networks

  • Quad-band GSM 850,900,1800,1900
  • 2G / 3G

Power supply

  • Optional built-in LiPo 950 mAh battery

Inputs and outputs

  • Up to 8 digital inputs
  • Up to 4 digital outputs
  • Up to 3 analog inputs
  • 1 impulse input
  • CANBUS

Other features

  • Optional battery
  • Operating temperature -40 .. +60 C
  • 2 Mb flash memory

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47705

General information

PurposeVehicle
InstallationProfessional

Housing

Weight150 g (5.29 oz.)
Size107x60x21 mm (4.21x2.36x0.83 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSOptional

Connectivity

Cellular network typeGSM 850/900/1800/1900
Cellular network generation3G, 2G

Interfaces

Number of outputs5
Number of inputs (all types)12
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
RS232 interfaceYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
On request

Tracking features

Tracking modesInterval
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

External power cut offYes
Supported
Car crashYes
Supported

Self monitoring

GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
