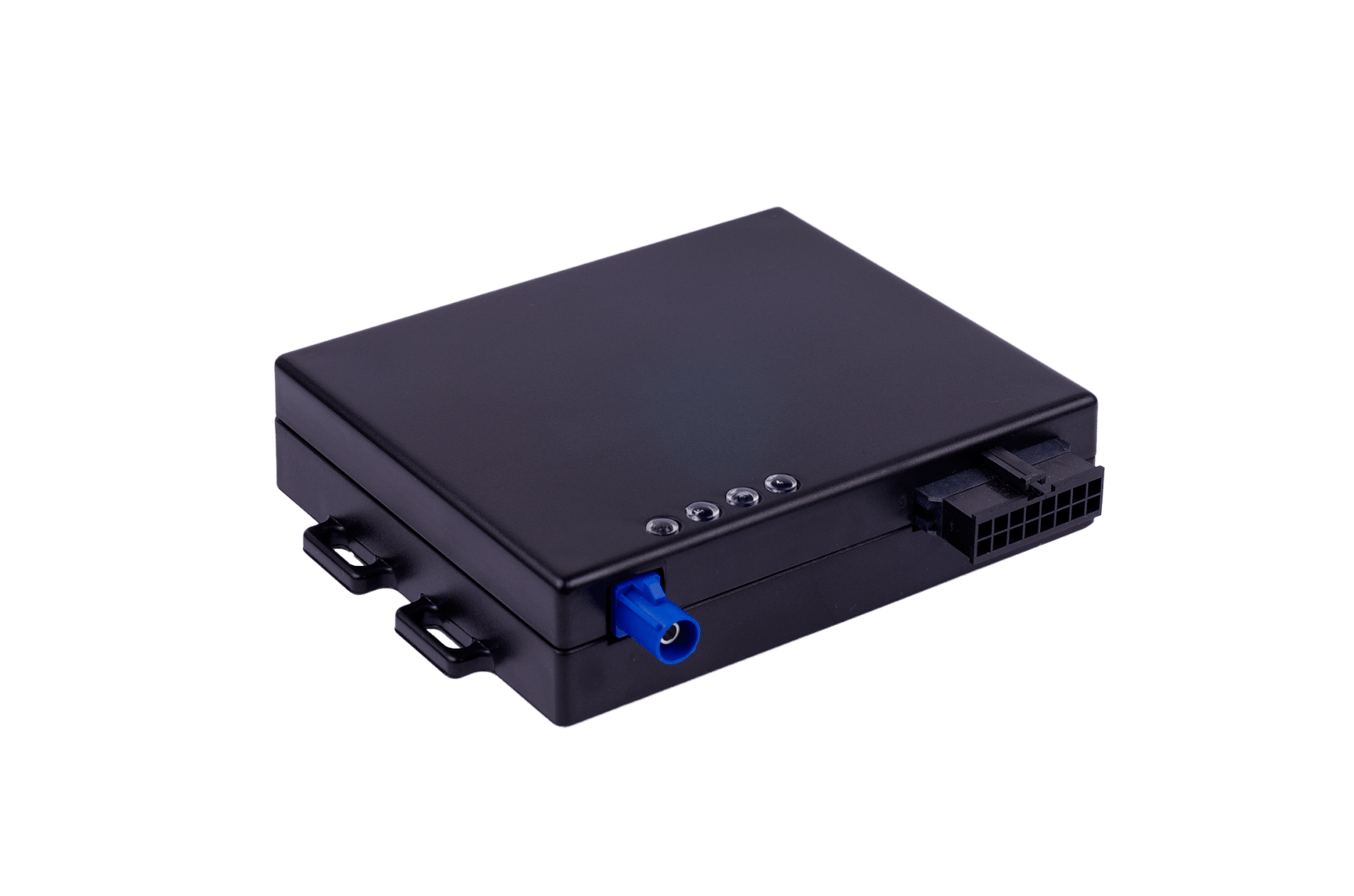

Satellite Solutions SAT-LITE 3

The navigation controller SAT-LITE 3 is intended for remote monitoring of mobile units and can be used in combination with any compatible software package. The tracker is a compact electronic device with integrated GPS/GLONASS and GSM modules. The tracker has a large number of inputs and outputs for monitoring various parameters and controlling external devices. External antennas allow receiving a stable GPS and GSM signal even in areas with a weak signal.

Show more

Location and tracking

  • GPS, GLONASS support
  • Continuous tracking mode
  • LBS support

Mobile networks

  • 2 Sim cards
  • 2G Network

Power supply

  • Build-in battery (400 mAh)
  • External power supply (7 – 44V)

Inputs and outputs

  • 2 Universal inputs
  • 1 Analog input
  • ACC input
  • 1 Output

Other features

  • Local and remote management
  • LED indication

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47722

General information

PurposeVehicle
InstallationProfessional

Housing

Peso120 g (4.23 oz.)
Tamanho113х95х25 mm (4.45x3.74x0.98 in)

GNSS Location

Antena externa (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Tipo de rede celularGSM Quad Band
Antena externa (Conexão)Yes
Geração de rede celular2G

Interfaces

Number of outputs1
Number of inputs (all types)4
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
Frequency inputsYes
Supported
Interface RS485Yes
Supported
Interface 1-WireYes
Supported

Hardware extras

Fuel level sensor readingYes
Supported
Voice listeningYes
On request
Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
OdometerYes
Supported

Self monitoring

Network signal levelYes
Supported
ID do operadorYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII parametersFuel level, fuel consumption, engine RPM, throttle position and other

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over SMS)
Supported
Remote outputs controlYes (over SMS)
Supported
Forced GNSS location update over SMSYes
Supported
