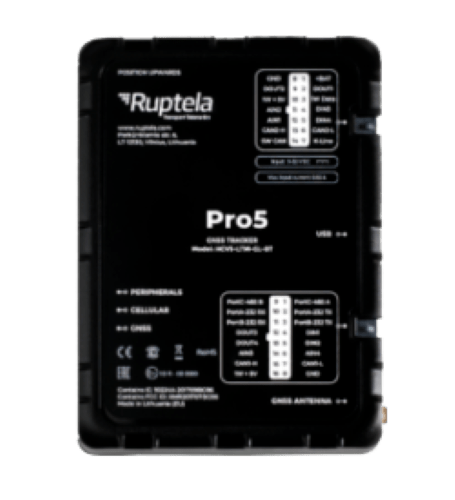

Ruptela PRO5

Ruptela PRO5 is a multi-purpose tracker that can be used for a variety of purposes ranging from regular tracking to agriculture and specialized machinery.

Mostrar mais

Location and tracking

  • GPS, GLONASS
  • Continuous tracking mode

Mobile networks

  • 2G version:
    Frequency bands @ 2G (GSM): 850/900/1800/1900 MHz

  • 3G version with 2G fallback:
    Frequency bands  @ 2G (GSM): 850/900/1800/1900 MHz
    Frequency bands @ 3G (UMTS): 800/850/900/1900/2100 MHz

  • LPWA version (CatM / NB-IoT) with 2G fallback:
    Frequency bands @ 2G (GSM): 850/900/1800/1900MHz
    [email protected] 4G (LTE Cat M1/NB-IoT): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28

Power supply

  • Build-in battery LiPo 3.7 V 1050 mAh
  • External power supply 9 – 32 V DC

Inputs and outputs

  • 4 Digital inputs
  • 4 Analog inputs
  • 4 Digital outputs
  • 2 RS232 (Transparent mode, Fuel level sensors, iQFreeze, RFID reader, Alcohol sensor, Fatigue sensor, Camera, etc…)
  • 1 RS485
  • 1x CAN (for J1939, FMS, Trailer EBS, proprietary HCV data reading)
  • 1-wire interface (data and 5V power)
  • BLE – FLS from Escort and Technoton, Axle load sensors from Technoton, ELA beacons (T, RHT, DI, MOV, MAG), wireless driver registration with iBeacon, API for communication and control via BLE.

Other features

  • Micro USB and 3x indications LEDs
  • Accelerometer
  • Jamming detection
  • Driver registration and identification

Conexão do servidor

Servidor da UEtracker.navixy.com (52.57.1.136)
Servidor dos EUAtracker.us.navixy.com (13.52.37.2)
Porta do servidor47747
Auto cadastroSim

Informação geral

PropósitoVeículo

Conectividade

Nível do sinalSim
ID do operadorSim

Informações de localização

Nível de sinal GNSSSim
LBSSim
Localização forçada pelo GNSS em preferência ao GPRSSim

Caracteristicas

Controle remoto das saídasSim
HodômetroSim
AcelerômetroSim
Leitura de ID do motoristaSim

Interfaces

Entradas digitais5
Número de saídas4
Sensor analógicoSim
Sensor de frequênciaSim
