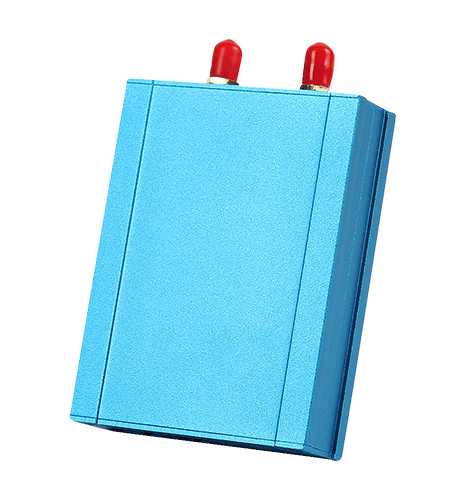

Pretrace TC56
Pretrace TC56 is a multifunctional GPS tracker for fleet management and M2M applications. It supports real time location, driving behavior analysis, temperature monitoring, two-ways communication, and other external equipment combination such as camera, RFID, fuel sensor, etc. TC56 will improve the efficiency of fleet management that increase the customers’ satisfaction.
Mostrar mais
Packaging content:
- TC56 tracking device
- User manual
Features:
- Harsh Driving Behavior Events
- Built-in 3 axis G-sensor
- Accurate Real Time & LBS Tracking
- Remote Engine/Door Control
- Quad band 850/900/1800/1900 MHz
- Temperature Monitoring Supported
- RS232/RS485 Serial Interface
- 1-Wire® Protocol Supported
- GSM Jamming Detection
- External RFID/Fuel Sensor Supported
- Configuration via SMS and Computer
Applications:
- Fleet management
- Asset tracking
- Insurance telematics
Specifications:
- Operating voltage: 11V~36V
- Working current: 50mA~150mA
- Operating temperature: -30℃ to 70℃ (with battery) -40℃ to 80℃ (without battery)
GSM Module:
- Dual/Quard Band GSM 850/900/1800/1900 MHz
- GPRS multi-slot class 10/8
- GPRS mobile station class B
- Class 4 (2W @ 850/900 MHz)
GPS Module:
- Accuracy: 5m
- Sensitivity: -162dBm
Conexão do servidor
| Servidor da UE | tracker.navixy.com (52.57.1.136) |
| Servidor dos EUA | tracker.us.navixy.com (13.52.37.2) |
| Porta do servidor | 46985 |
| Auto cadastro | Sim |
Informação geral
| Propósito | Veículo |
| Peso | 130 g (4.59 oz.) |
Informações de localização
| Nível de sinal GNSS | Sim |
Caracteristicas
| Controle remoto das saídas | Sim |
| Hodômetro | Sim |
| Leitura de ID do motorista | Sim |
Interfaces
| Entradas digitais | 3 |
| Número de saídas | 3 |
Campos de entrada
Campos de status
Monitoramento de eventos
