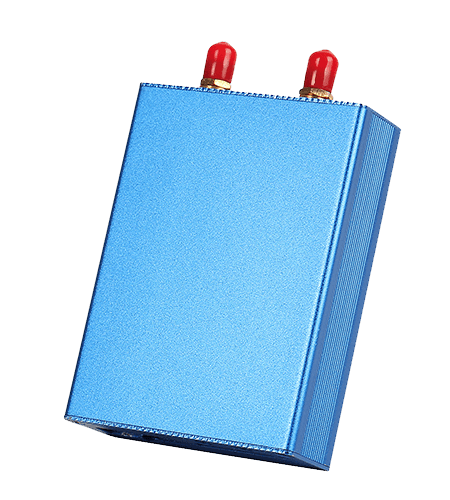

Pretrace TC55

Pretrace TC55 is designed for the most stable and economic GPS tracking for vehicles. With the optional accessories connecting, TC55 is the ultimate solution for fleet managers who in need of location tracking, emergency support, speeding report, anti-thief alarm, engine remote control, etc. It is widely used for the fleet management, M2M solution.

Mostrar mais

Packaging content:

  • TC55 tracking device
  • User manual


  • Remote Control for Engine or Door
  • High Accurate Stable Location
  • Built-in Vibration Sensor
  • Two Way Communications (Optional)
  • Quad band 850/900/1800/1900 MHz
  • Vehicle Battery Protection
  • Configuration via SMS and Computer
  • FOTA (Firmware Update via Wireless)


  • Fleet management
  • Asset tracking
  • Insurance telematics


  • Operating voltage: 9v~36v
  • Working current: 50mA~150mA
  • Operating temperature: -20℃ to 60℃ (with battery)  -30℃ to 70℃ (without battery)

GSM Module:

  • Dual/Quard Band GSM 850/900/1800/1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Class 4 (2W @ 850/900 MHz)

GPS Module:

  • Accuracy: 5m~10m
  • Sensitivity: -162dBm

Conexão do servidor

Servidor da (
Servidor dos (
Porta do servidor46985
Auto cadastroSim

Informação geral

Peso130 g (4.59 oz.)
Tamanho24x65x95 mm (0.94x2.56x3.74 in)
Antena interna (GNSS)Yes
Antena interna (Conexão)Yes


Tipo de rede celularGSM Quad Band
Geração de rede celular2G
ID do operadorYes


Controle remoto das saídasSim
Bateria integradaYes
Capacidade da bateria500 mAh


Entradas digitais2
Número de saídas3
