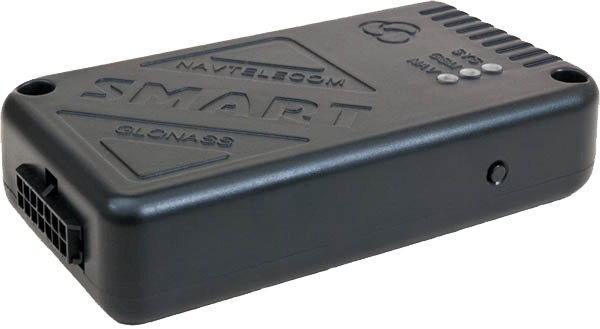

Navtelecom Smart S-2333
Navtelecom SMART S-2333 is a simple and cost effective GPS/GLONASS monitoring solution, which has RS-485 and 1-wire input. The device is able to read CAN-data with the help of CAN-LOG or CANTEC adapters. S-2333 has a built-in battery and a microphone.
Package contents include:
- 14-pin cable (harness) type Microfit-14
- Interface cable with a MiniUSB connector
- CD with software and documentation
- User manual
Location and tracking
Navtelecom SMART S-2333 model is embedded with GPS and has the support of GLONASS system. As a backup it uses Cell-ID or LBS services to get the location of the unit.
With Quad-band GSM 2G module Navtelecom SMART S-2333 can be operated all over the world.
External power supply might be 8.5 – 48V, with an over-voltage protection, which makes possible to install S-2333 both on cars and vans.
S-2333 also features built-in rechargeable backup battery. When fully charged it ensures about 4-6 hours of device operation (in normal conditions).
Local and remote management
Navtelecom SMART S-2333 can not be controlled over GPRS, the configuration should be made by using special software “NTC Configurator”.
Navtelecom SMART S-2333 has following features:
- Real Time Tracking
- Fuel level reading
- Remote outputs control
- The support of FLEX-protocol for traffic economy
- RS-485 sensor
- EGTS Protocol support
- Internal battery
|EU platform||tracker.navixy.com (220.127.116.11)|
|US platform||tracker.us.navixy.com (18.104.22.168)|
|Weight||85 g (3 oz.)|
|Size||102х57х22 mm (4.02x2.24x0.87 in)|
|Internal antenna (GNSS)||Yes|
|Cellular network type||GSM Quad Band|
|Internal antenna (Connection)||Yes|
|Cellular network generation||2G|
|Number of outputs||2|
|Number of inputs (all types)||4|
|Battery capacity||1050 mAh|
|Fuel level sensor reading||Yes|
|Driver ID reading||Yes|
|External temperature sensor reading||Yes|
|Location by Cell ID||Yes|
|External power cut off||Yes|
|Mobile signal jamming||Yes|
|Network signal level||Yes|
|GNSS signal level||Yes|
|External power source voltage||Yes|
|Internal battery level||Yes|
|CAN/OBDII reader type||Yes|
|CAN/OBDII parameters||Fuel level, fuel consumption, engine RPM, throttle position, speed, coolant temperature and other|
|Server connection setup over SMS||Yes|
|Remote outputs control||Yes (over SMS), Yes|
|Forced GNSS location update over SMS||Yes|
