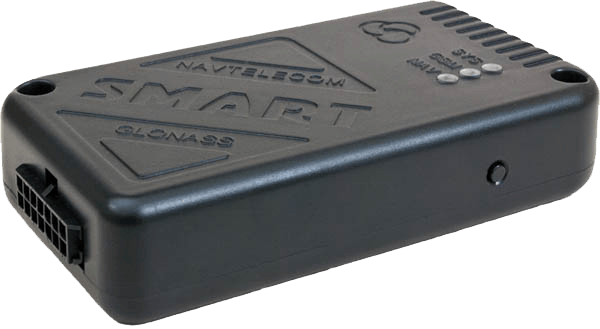

Navtelecom Smart S-2331

Navtelecom SMART S-2331 is a GPS/GLONASS monitoring unit, which has RS-232 and 1-wire input. S-2331 has a built-in battery and a microphone.

Package contents

Package contents include:

• Device
• 14-pin cable (harness) type Microfit-14
• Interface cable with a MiniUSB connector
• CD with software and documentation
• Packaging

Location and tracking

Navtelecom SMART S-2331 model is embedded with GPS and has the support of GLONASS system. As a backup it uses Cell-ID or LBS services to get the location of the unit.

Mobile networks

With Quad-band GSM 2G module Navtelecom SMART S-2331 can be operated all over the world.

Power supply

External power supply might be 8.5 – 48V, with an over-voltage protection, which makes possible to install S-2331 both on cars and vans.

S-2331 also features built-in rechargeable backup battery. When fully charged it ensures about 4-6 hours of device operation (in normal conditions).

Local and remote management

Navtelecom SMART S-2331 can not be controlled over GPRS, the configuration should be made by using special software “NTC Configurator”.

Features

Navtelecom SMART S-2331 has following features:

• Real Time Tracking
• Remote outputs control
• The support of FLEX-protocol for traffic economy
• 1-wire
• RS-232 sensor
• EGTS Protocol support
• Internal battery
