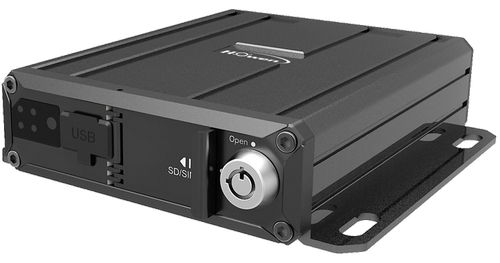

Howen Technologies Hero-ME41-02

Hero-ME41-02 is a mini size mobile DVR, enabling the most flexible installation locations in vehicles. Comparing with dash camera, Howen 2ch MDVR can connect to any types of AHD vehicle cameras, providing flexibility for customer to choose different cameras according to the requirements for different vehicles. The mini 2 channel MDVR has been designed with dustproof standard so that it can fit with heavy duty trucks’ environment and application. Also, it would be easier for installers get the system install in different areas of the trucks. Rich interfaces including alarm inputs/outputs, RS232, video outputs. Built-in GPS/3G/LTE/G-sensor provide functional features working with multiple platforms.

Mostrar mais

Location and tracking

  • GPS
  • Continuous tracking mode

Mobile networks

  • 3G / 4G
  • Wi-Fi

Power supply

  • External power supply 9V ~ 36V

Interfaces

  • 2 alarm inputs, 1 alarm output (12V high-level)
  • 1 RS232 port
  • USB2.0, type A female, front panel USBImage

Data Storage

  • 1 SD Card, up to 512GB

Other features

  • Compact design, super mini size for flexible installations;
  • Supports 2ch CIF/HD1/D1/960H/720P/1080p
    Total resource: [email protected]
  • H.265 video recording, saving up to 50% video storage and data streaming;
  • Support to connect to any types of vehicles camera for installation in any location;
  • Supports SD card, up to 256GB
  • Industry level all-in-one design: dustproof and high temperature resistance for commercial vehicles;
  • Optional Built-in 3G/LTE/GPS/G-SENSOR;
  • Alarm triggering system avoid damaging by drivers or passengers;
  • Operating Temperature -20℃~70℃

Designed for vehicles
All the Features from antivibration structure to wide input voltage are designed for the vehicle environment.

H.264/H.265 Video coding

  • Smoother streaming video and better quality, save up to 40% of data and storage.
  • PAL: 50fps 720P/1080P, NTSC:60fps 720P/1080P




Conexão do servidor

Servidor da UEtracker.navixy.com (52.57.1.136)
Servidor dos EUAtracker.us.navixy.com (13.52.37.2)
Porta do servidor47670

Informação geral

PropósitoVeículo
Tamanho180x160x62 mm (7.09x6.3x2.44 in)
Antena interna (GNSS)Yes
Antena interna (Conexão)Yes

Conectividade

Tipo de rede celularGSM Quad Band
Geração de rede celular4G, 3G

Informações de localização

Nível de sinal GNSSSim
GPSYes

Interfaces

Interface 1-WireYes
