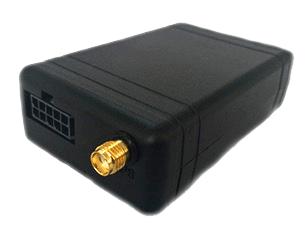

GoSafe G3S

The G3S is a new generation vehicle or asset tracking and telemetry device designed for maximum autonomy and ease of use. It is intended for use to protect and trace items such as containers, caravans, fixed plant, construction equipment, in shore boats and truck trailers. It can also be used for temporary tracking of vehicles for consignment purposes as well as covert “slap and track” operations.

Show more

Location and tracking

GoSafe G3S model is embedded with GPS chip. It doesn’t support Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.

Mobile networks

With a Quad-band GSM module G3S can operate all over the world where 2G networks are supported.

Features

Key features of the GoSafe G3S device are:

  • 2 outputs, 3 inputs and one ignition line.
  • Upgrading Firmware Over The Air (FOTA)
  • Double GPRS servers

Power supply

External power supply range might be 8V – 36V, which makes possible to install device both on cars and vans.

GoSafe G3S also features an optional rechargeable 250 mAh backup battery. When fully charged it ensures about 3-4 hours of device uptime (in normal conditions).

Local and remote management

GPS tracker GoSafe G3S can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

In case ‘firmware’ of the device has an (some) error(s) or needs to be upgraded to provide the user with newly implemented services, the device can upgrade its internal ROM file over the air (Firmware OTA), using GPRS. The users do not need to visit the vehicle individually to download the new firmware on those vehicles.

LED Indication

G3S has three LEDs

  • LED indicating GPS reception
  • LED indicating GSM/GPRS reception
  • LED indicating Power status

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47771
Integrated on10/03/2016

General information

PurposeVehicle
InstallationProfessional

Housing

Weight80 g (2.82 oz.)
Size80x52x26 mm (3.15x2.05x1.02 in)

GNSS Location

External antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs2
Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
Frequency inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity250 mAh
Built-in batteryOptional
Emergency buttonNo

Hardware extras

Fuel level sensor readingNo
Driver ID readingNo

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over SMS), Yes
Firmware update OTAYes
Forced GNSS location update over SMSYes
Supported

Certification

CEYes
FCCYes
EACYes
