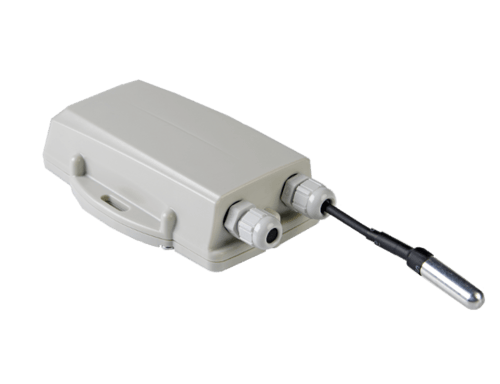

Digital Matter Falcon Cellular

The Falcon Cellular is a super smart, battery powered asset monitoring device. Its sturdy ABS/Polycarbonate plastic housing with IP67 protection allows it to survive during harsh weather conditions.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous and interval tracking modes

Mobile networks

  • 2G: 850/900/1800/1900 MHz
  • LTE: 1-5, 6, 8, 12, 13, 17, 19, 20, 25, 26, 28

Power supply

  • 3 x AA batteries
  • External power supply 5-16 V line power

Inputs and outputs

  • 2 Digital inputs
  • 1 Analog input
  • 1 Digital output

Other features

  • IP67 protection
  • Operating temperature -20°C to +60°C
  • Internal flash memory
  • 3-axis accelerometer

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port46992

General information

PurposeVehicle
InstallationDIY

Housing

Size135x90x35 mm (5.31x3.54x1.38 in)
Waterproof classIP67

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation4G, 2G

Interfaces

Number of outputs1
Number of inputs (all types)3
Discrete inputsYes
Supported
Analog inputsYes
Supported

Hardware features

AccelerometerYes
Internal temperature sensorYes
Supported

Tracking features

Tracking modesInterval, Continuous
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
On request
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Forced GNSS location update over SMSYes
On request
