cGuard Litom

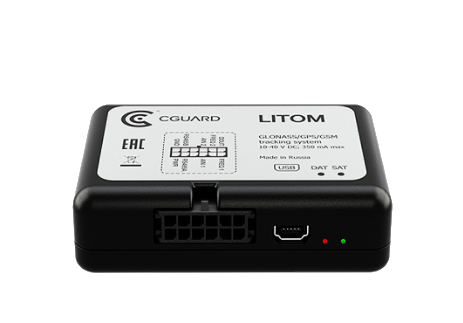

cGuard Litom is a vehicle GPS tracker, which is ideal for monitoring the location of remote objects. This device is easy for configuring with the help of a convenient web configurator. cGuard Litom is equipped with a SIM holder, which allows to install a SIM card. With the help of internal 4 MB memory device is able to keep tracking points.

Show more

Location and tracking

  • GPS, GLONASS Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • Dual band 900/1800 MHz
  • 2G Network

Power supply

  • External power supply (8-40 V)

Inputs and outputs

  • 2 Discrete/Analog inputs
  • 2 Impulse/Frequency Inputs
  • 1 Output

Other features

  • Internal accelerometer
  • Local and remote management
  • Internal memory
  • RS-485 and 1-Wire

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47729

General information

PurposeVehicle
InstallationProfessional

Housing

Weight52 g (1.83 oz.)
Size70x50x20 mm (2.76x1.97x0.79 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM 900/1800
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)4
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
Frequency inputsYes
Supported
RS485 interfaceYes
1-Wire interfaceYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
