cGuard 285

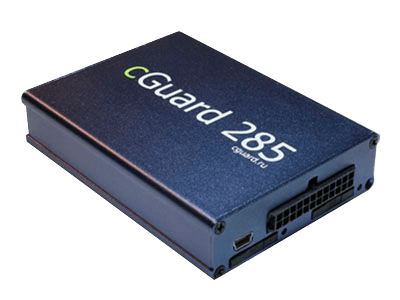

cGuard 285 is GPS/GLONASS tracker designed especially for trucks, vans and public or private transport buses. This device has a high level of functionality.

Show more

It has external GNSS and GSM antennas and a full set of different interfaces like RS232, R485, 1-wire and CAN. This device also has a built-in accelerometer, gyroscope, battery and an emergency button. There is a possibility to use 2 SIM cards in cGuard 285.

The main SIM-card should be inserted to the SIM2 slot.

The terminal can provide work of voice communication and auto information systems.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47729
Integrated on08/09/2015

General information

PurposeVehicle
InstallationProfessional

Housing

Weight200 g (7.05 oz.)
Size100x22x74.5 mm (3.94x0.87x2.93 in)

GNSS Location

Internal antenna (GNSS)No
External antenna (GNSS)Yes

Connectivity

Cellular network typeGSM 900/1800
Internal antenna (Connection)No
External antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of RS232 interfaces1
Number of outputs4
Number of inputs (all types)8
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
Frequency inputsYes
Supported
RS232 interfaceYes
RS485 interfaceYes
1-Wire interfaceYes
OutputsYes
Supported

Hardware features

Battery capacity900 mAh
Built-in batteryYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Events monitoring

Battery lowYes
Supported
Input changeYes
On request
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
External power source voltageYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
