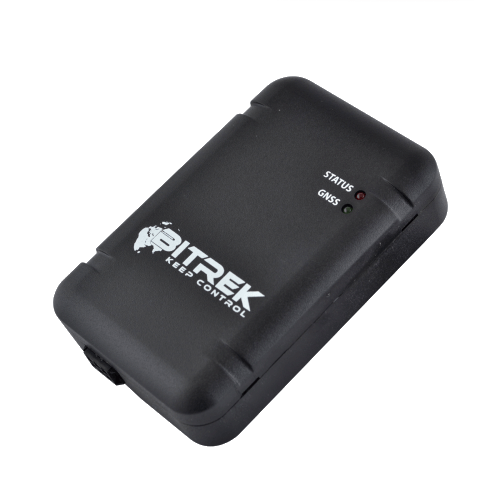

Bitrek BI 868Q TREK (Wialon IPS)

BI 868 TREK is used for basic online vehicle GPS tracking and control. This tracker determines the coordinates, speed, distance and sends all the information to server via GPRS. BI 868 TREK is a low-cost device that provides high-quality tracking and ignition control. Device has built-in battery that allows operate up to 12 hours without the external power.

Show more

Location and tracking

  • GPS, GLONASS Support
  • Continuous tracking mode
  • LBS

Mobile networks

  • 900/1800 MHz
  • 2G Network

Power supply

  • 350 mAh Build-in battery
  • 12/24 V external power supply

Inputs and outputs

  • 1 Discrete input
  • 2 Analog inputs
  • 1 Digital output

Other features

  • Internal temperature sensor
  • Remote management
  • LED indication
  • IP54

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationProfessional

Housing

Weight120 g (4.23 oz.)
Size60x93x25 mm (2.36x3.66x0.98 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM 900/1800
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported

Hardware features

Internal temperature sensorYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported

Events monitoring

Battery lowYes
On request

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
Network roaming statusYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over SMS)
Supported
Forced LBS location update over GPRSYes
On request
Forced GNSS location update over SMSYes
On request
