Bitrek BI 530R TREK

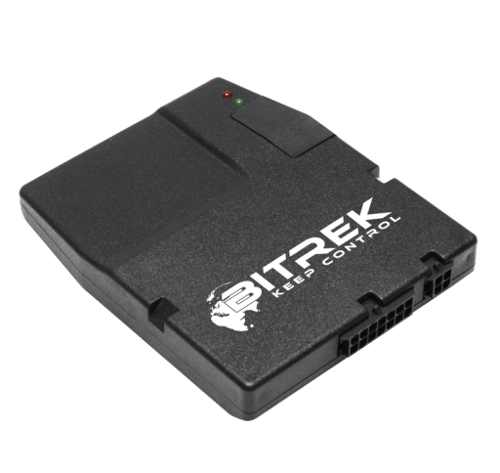

BI 530R TREK is an extremely lightweight GPS/GlONASS tracker that provides a cost-effective solution for your tracking needs. This device allows you to connect various additional sensors for tracking things like ignition, temperuture, fuel levels and driver identification.

Show more

Location and tracking

  • GPS, GLONASS
  • Continous tracking mode

Mobile networks

  • Class 10 GPRS
  • 2G

Power supply

  • Build-in 130 mAh battery

Inputs and outputs

  • 2 analog inputs
  • 3 discrete inputs
  • 2 outputs
  • RS-485 interface

Other features

  • IP54 protection
  • Can store up to 50 000 points in memory
  • Operating temperature -30° … +80° C

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle

Housing

Peso75 g (2.65 oz.)
Tamanho77x96x14 mm (3.03x3.78x0.55 in)

GNSS Location

Antena interna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Tipo de rede celularGSM 900/1800
Antena interna (Conexão)Yes
Geração de rede celular2G

Interfaces

Number of outputs2
Number of inputs (all types)5
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
On request
Frequency inputsYes
Supported
Interface RS485Yes

Hardware features

Capacidade da bateria130 mAh
Bateria integradaYes
Internal temperature sensorYes
Supported

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesContinuous
OdometerYes
Supported

Self monitoring

ID do operadorYes
Supported
Network roaming statusYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

Tipo de leitor CAN/OBDIIExternal
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over SMS)
Supported
Remote outputs controlYes (over SMS), Yes
Supported
