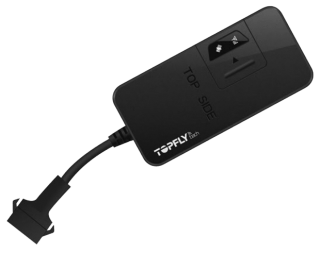

TopFlyTech T8808A+

TopFlyTech model T8808A+ is a compact and affordable tracker for satellite monitoring of vehicles, motor bikes and other mobile objects. It has no external antennas, so the installation process is quite simple.

Mostrar más

T8808+ versions: “A” and “B”

In comparison to basic model T8808B+, which has no ouputs, the model T8808A+ features one output – for engine block relay or any other control device:

  • T8808A+ has 4 pin connector: Power, GND, ACC (orange) and Output (yellow)

Package content

The package contents:

  • GPS tracker
  • 4-pin harness (T8808A+ model)
  • Sponge double-side adhesive tape
  • Power supply extension line

Also as an option, manufacturer offers engine block relay for T8808A+ model.

Location and tracking

T8808A+ is embedded with GPS and it supports GLONASS and alternative systems. It also supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

With Quad-band GSM module T8808A+ can be operated all over the world.

Power supply

With a voltage range 6-36V, it is possible to install T8808+ both on cars and vans.

T8808+ also features a built-in rechargeable backup battery. When fully charged it ensures about 2-3 hours of device operation (in normal conditions). When external power is cut off, the tracker sends location to server.

To switch the tracker OFF you need to remove the SIM card, after that in 5-10 seconds the device will switch off.

Local and remote management

T8808+ tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8808+ has two LEDs:

  • Red LED indicates GSM/GPRS mode
  • Blue LED indicates GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.

Additional notes

The “ACC” wire of T8808+ must be correctly connected. According to it, the device determines that vehicle is in use, switches GPS module to active mode and reports about its position to tracking server.

If there is no “ACC” signal, GPS module goes off and device does not send GPS coordinates. However, Cell ID information is updated regardless the “ACC” status.

There is also a “lifehack” which can be used for testing purposes or during the installation process: if you’re shaking the device within 60-70 seconds, GPS module will be enabled by accelerometer activity (regardless the “ACC” state) and device will update its location.

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47744

Información general

PurposeVehículo
InstalaciónProfesional

Alojamiento

Peso70 g (2.47 oz.)
Tamaño81x38.5x13 mm (3.19x1.52x0.51 in)
ImpermeableIP6X

Localización GNSS

Antena interna (GNSS)
GPS
GLONASS

Conectividad

Tipo de la red del celularGSM Quad Band
Antena interna (Conexión)
Generación de red celular2G

Interfaces

Número de salidas1
Número de entradas (todos tipos)2
Entrada ACC/ignisión
Soportado
Entradas digitales
Soportado
Salidas
Soportado

Características de hardware

Capacidad de batería280 mAh
Batería integrada

Características de rastreo

Modos de rastreoIntervalo, Continuo
Localización por Cell ID
Soportado
Odómetro
Soportado
ECO driving
On request

Monitoreo de eventos

Poca batería
Soportado
Corte de alimentación externa
Soportado
Accidente de tráfico
On request

Automonitoreo

Nivel de señal GNSS
Soportado
Nivel de batería interna
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por GPRS)
Soportado
Control remoto de las salidasSí (por GPRS)
Soportado
Formato de mensajes para intercambioBINARY

Certificacón

CE
FCC
EAC
