TopFlyTech T8803 is a basic model for vehicle tracking, a simplified modification of T8803 "PRO". It is designed for common applications and might be a good choice for private car owners and budget fleet tracking without special requirements.
The package contents:

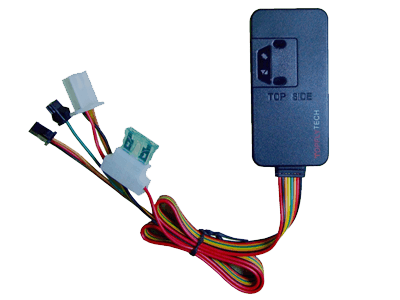

- GPS tracker
- One digital input extension line (170 cm)
- Sponge double-side adhesive tape
- Power supply extension line (170 cm)
Also as an option, manufacturer offers
- Engine block relay
- Microphone and SOS line
Location and tracking
T8803 is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
As a basic model in series, T8803 has just simple time/interval tracking.
With Quad-band GSM 2G module T8803 can be operated all over the world.
External power supply might be 6-36V, which makes it possible to install T8803 both on cars and vans.
T8803 also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).
Local and remote management
TFT T8803 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
T8803 has two LEDs:
- Red LED indicates GSM/GPRS mode
- Blue LED indicates GPS reception
The LEDs light goes out automatically in five minutes after the device is switched on.
Conexión del servidor
|Servidor de la UE||tracker.navixy.com (184.108.40.206)|
|Servidor de USA||tracker.us.navixy.com (220.127.116.11)|
|Puerto de servidor||47744|
|Peso||70 g (2.47 oz.)|
|Nivel de señal||Sí|
|ID del operador||Sí|
Información de ubicación
|Nivel de señal GNSS||Sí|
|Control remoto de las salidas||Sí|
|Número de salidas||1|
