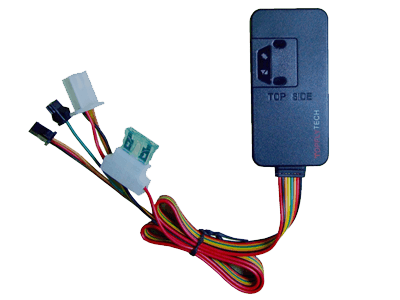

TopFlyTech T8803+ (T8803 Plus)

TFT T8803+ is a third generation GPS useful tracker for vehicle tracking with a lot of features. With no external antennas, the installation process is quite easy.

Mostrar más

Package content

The package contents:

  • GPS tracker
  • One digital input extension line (170 cm)
  • Sponge double-side adhesive tape
  • Power supply extension line (170 cm)

Also as an option, manufacturer offers

  • Engine block relay
  • Microphone and SOS line

Location and tracking

T8803+ is embedded with GPS and supports GLONASS and alternative systems (GalileoBeidou).  It also supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Tracking modes in T8803+ model has time/interval tracking. And additionally it supports direction variation tracks and distance interval tracks. Also it has an option for sms reports on time interval.

Mobile networks

With Quad-band GSM module T8803+ can be operated all over the world.

Power supply

External power supply might be 6-36V, which makes it possible to install T8803+ both on cars and vans.

T8803+ also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Remote management

TFT T8803+ tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8803+ has two LEDs:

  • Red LED indicates GSM/GPRS mode
  • Blue LED indicates GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.


Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47744
Auto registro

Información general

FinalidadVehículo
Tamaño81x38.5x13 mm (3.19x1.52x0.51 in)
ImpermeableIP6X
Antena interna (GNSS)Yes
Antena interna (Conexión)Yes

Conectividad

Nivel de señal
ID del operador
Tipo de la red del celularGSM Quad Band
Generación de red celular2G

Información de ubicación

Nivel de señal GNSS
LBS
GPS
GLONASS
Galileo

Características

Control remoto de las salidas
Odómetro
Batería integradaYes
Capacidad de batería465 mAh

Interfaces

Entradas digitales2
Número de salidas1
