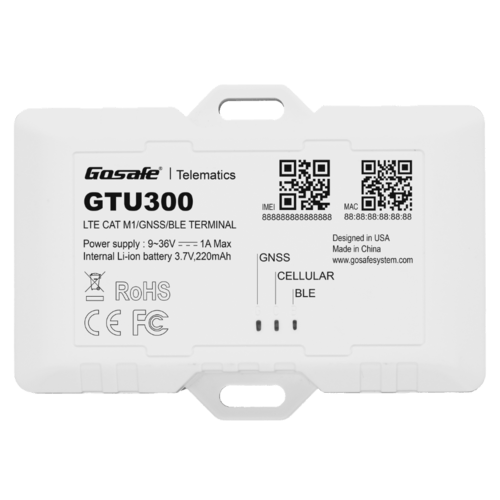

Gosafe Prime GTU-300

GTU-300 is a tracker made specifically for fleet and truck business. It's able to collect and manage key data, meeting your business needs.

Mostrar más

GTU-300 is a tracker made specifically for fleet and truck business. It’s able to collect and manage key data, meeting your business needs.

Location and tracking

GTU-300 supports almost all major navigation systems and can be used all over the world.
This device supports 3 separate variables for track detection making sure track look pristine.

  • 72-channel GPS, Glonass, Beidou
  • Continuous tracking mode (distance/time/angle)
  • Assisted GPS
  • LBS

Mobile networks

GTU-300 support wide range of networks from 2G to 4G ensuring device stays connected will be able to report even when deployed in remote rural areas.

  • GSM Quad-band 850/900/1800/1900 MHz
  • HSPA Global: B1/B2/B5/B6/B8 MHz
  • LTE CAT-M1/NB/2G (Opt): B2, B3, B4, B8, B12, B13, B20, B28 MHz
  • LTE CAT-1: B1, B2, B3, B4, B5, B8, B17, B20, B28 MHz

Power supply

Device utilizes standard external power supply.
Built-in internal battery will prevent sudden losses of connection.

  • LI-ON 220mAh, Battery
  • Operating voltage 9-40 VDC operational for 12V & 24V

Inputs and outputs

GTU-300 is rich with inputs. You will be able to fulfill your business needs from basic and universal like ignition and fuel level tracking to more complex applications: axle load, humidity. Digital inputs will allow you to track emergency buttons, doors and even seat belts. While digital outputs open a possibility of relay blocking.

  • 2 Digital inputs
  • Ignition input
  • 1-wire interface
  • RS-232 interface
  • 3 Digital outputs
  • BLE 4.2 or 5.0

Other features

GTU-300 has a waterproof casing. Built-in accelerometer makes it possible to track and evaluate driving styles of employees.

  • LTE
  • Accelerometer
  • Harsh driving
  • IP30 rating
  • Built-In GSM & GPS Antenna
  • Audio jack
  • Speaker
  • 8-mbit memory

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47651
Auto registro

Información general

FinalidadDispositivo

Conectividad

Estado de roaming
Nivel de señal
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS

Características

Control remoto de las salidas
Odómetro
Lectura del identificador del conductor

Interfaces

Entradas digitales8
Número de salidas3
Sensor analógico
