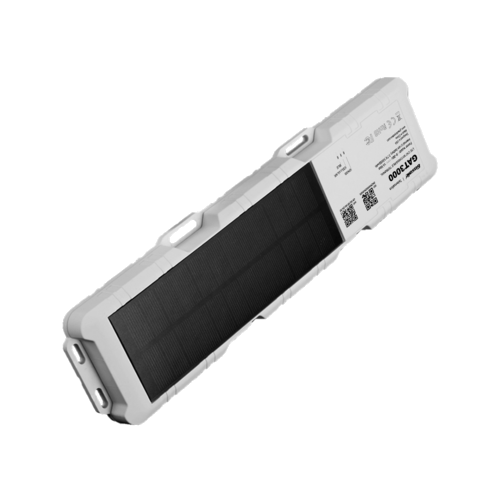

Gosafe Prime GAT-3000

GAT-3000 is a solar-powered tracking device with long-lasting battery that is perfect for tracking valuable assets and containers.

Mostrar más

GAT-3000 is a solar-powered tracking device with long-lasting battery that is perfect for tracking valuable assets and containers.

Location and tracking

GAT-3000 supports almost all major navigation systems and can be used all over the world.
This device supports 3 separate variables for track detection giving you full flexibility over trip detection.

  • 72-channel GPS, Glonass, Beidou
  • Continuous tracking mode (distance/time/angle)
  • Assisted GPS
  • LBS

Mobile networks

GAT-3000 support wide range of networks from 2G to 4G ensuring device will be able to report even when deployed in remote rural areas.

  • GSM Quad-band 850/900/1800/1900 MHz
  • HSPA Global: B1/B2/B5/B6/B8 MHz
  • LTE CAT-M1/NB/2G (Opt): B2, B3, B4, B8, B12, B13, B20, B28 MHz
  • LTE CAT-1: B1, B2, B3, B4, B5, B8, B17, B20, B28 MHz

Power supply

Device utilizes standard external power supply.
Main advantage of this device is solar battery. Your device will auto-recharge on it’s own, prolonging it’s lifespan automatically.
It also has a sizeable internal 10000mah battery that along with solar power allows deployments for very extended periods of time.

  • LI-ON 10000mAh, Battery
  • Solar Charging Voltage: 6 VDC
  • Operating Voltage: 9-32 VDC operational for 12V & 24V

Inputs and outputs

  • 2 Digital inputs
  • Ignition input
  • 1-wire interface
  • RS-232 interface
  • 2Digital outputs
  • BLE 4.2

Other features

GAT-3000 has an IP67 waterproof casing and proximity sensor that detects dismantle events.
Device can be easily mounted with use of adhesives or bolts.

  • Screws, Tie Wrap, Velcro or adhesive
  • IP67 rating
  • Built-In GSM & GPS Antenna
  • 8-Mbit memory
  • LEDs

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47651
Auto registro

Información general

Finalidadasset,vehicle
Peso700 g (24.69 oz.)

Conectividad

Estado de roaming
Nivel de señal
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS

Características

Control remoto de las salidas
Odómetro
Lectura del identificador del conductor

Interfaces

Entradas digitales8
Número de salidas2
Sensor analógico
