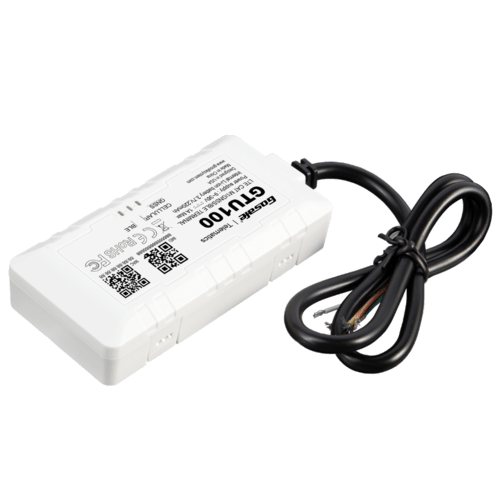

Gosafe Prime GTU-100

GTU-100 is a Basic Car Tracker that was specially developed for basic vehicle tracking and fleet management.

Mostrar más

GTU-100 is a Basic Car Tracker that was specially developed for basic vehicle tracking and fleet management.

Location and tracking

GTU-100 supports almost all major navigation systems and can be used all over the world.
This device supports 3 separate variables for track detection making sure every kilometer traveled will be recorded, without corner cutting.

  • 72-channel GPS, Glonass, Beidou
  • Continuous tracking mode (distance/time/angle)
  • LBS

Mobile networks

GTU-100 support wide range of networks from 2G to 4G ensuring device stays connected even in remote areas.

  • GSM Quad-band 850/900/1800/1900 MHz
  • HSPA Global: B1/B2/B5/B6/B8 MHz
  • LTE CAT-M1/NB/2G (Opt): B2, B3, B4, B8, B12, B13, B20, B28 MHz
  • LTE CAT-1: B1, B2, B3, B4, B5, B8, B17, B20, B28 MHz

Power supply

Device utilizes standard external power supply, and internal battery will ensure device reports even when the car is off.

  • LI-ON 220mAh, Battery
  • Operating voltage 9-40 VDC operational for 12V & 24V

Inputs and outputs

Even though the device has only a couple of inputs, BLE allows to monitor much more – CANBUS, tags, doors, fuel and temperature sensors. Analog input allows various analog sensors to be connected and processed by the device. Device can also be used for driver detection using RFID tags.

  • 1 Digital input
  • Ignition input
  • 1-wire interface
  • 1 Digital outputs
  • BLE 4.0

Other features

GTU-100 has a waterproof casing. Built-in accelerometer makes it possible to track and evaluate driving styles of employees.

  • LTE
  • Accelerometer
  • Harsh driving
  • IP65 waterproofing
  • Built-In GSM & GPS Antenna

Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47651
Auto registro

Información general

FinalidadDispositivo

Conectividad

Estado de roaming
Nivel de señal
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS

Características

Control remoto de las salidas
Odómetro
Lectura del identificador del conductor

Interfaces

Entradas digitales8
Número de salidas1
Sensor analógico
